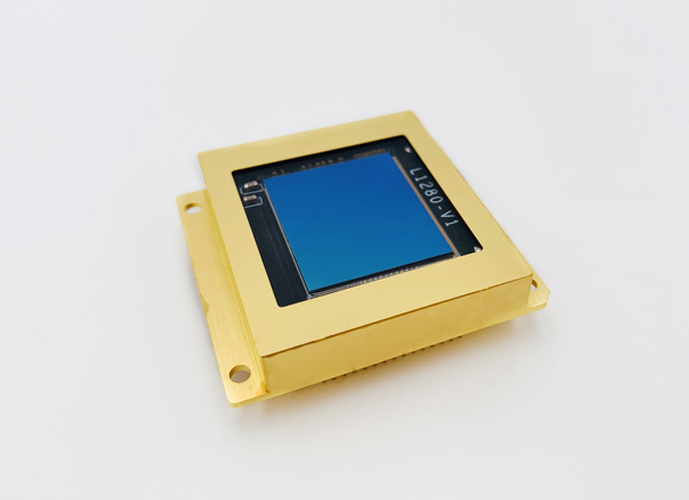

1280 InGaAs High-Definition (HD) Area Sensor
Quantité : 10-1000 pc Prix : USD9,000 - USD 18,00
GH-SW1280 InGaAs area image sensors are two-dimensional image sensors. The ingaas sensor has a hybrid structure consisting of a CMOS readout circuit (ROIC: readout integrated circuit) and back-illuminated InGaAs photodiodes for short wavelength infrared (SWIR, 900-1700) and extended wavelength infrared (Vis-SWIR, 400-1700) regions.
The package includes a Thermo Electric Cooler (TEC) that can utilized for cooling the FPA for high signal-to-noise ratio (SNR).
It is well-adapted to a large range of applications, such as long range surveillance at severe weather conditions (fog, haze, rain, smoke, dust), hyperspectral imaging, remote sensing and science.
TECHNICAL INFORMATION OF GH-SW1280
|
Key Features |
GH-SW1280 |
|
Sensor Type |
InGaAs PIN-Photodiode |
|
Format |
1280 x 1024 |
|
Pixel Pitch |
15 μm |
|
Spectral Response |
0.9-1.7μm |
|
Integration Type |
Snapshot |
|
Readout Modes |
ITR, IWR, CDS |
|
Exposure Time |
1μs to full frame |
|
Maximum Full Frame Rate |
100 Hz |
|
Maximum Pixel Rate |
22MHz |
|
Output Signal Swing |
≤2V |
|
Temperature Sensor Output |
Yes |
|
Quantum Efficiency(QE) |
>70% (1.0um ~ 1.6um） |
|
Noise with ROIC |
40e- @HG |
|
Dark Current |
30fA@0.1V&18℃ |
|
Array Operability |
> 99.5% ( Minimum ) |
|
Non Uniformity without Correction |
<5%</span> |
|
Dimension (W x H x D) |
40mm × 36mm × 7.2mm |
|
Windows |
Quartz/ Sapphire |
|
Number of Pins |
30-pin Metal DIP Package |
|
Packaging Characteristics |
Hermetically sealed |
|
Operating Temperature |
- 40℃ to 70℃ |
|
Storage Temperature |
- 40℃ to 70℃ |
As one of the most professional image sensor companies, Zillion Techs provides swir imaging, etc. If you want to know more about swir definition and swir technology, Contact us.
Personne à contacter : techs zillion, +86 18589063051
