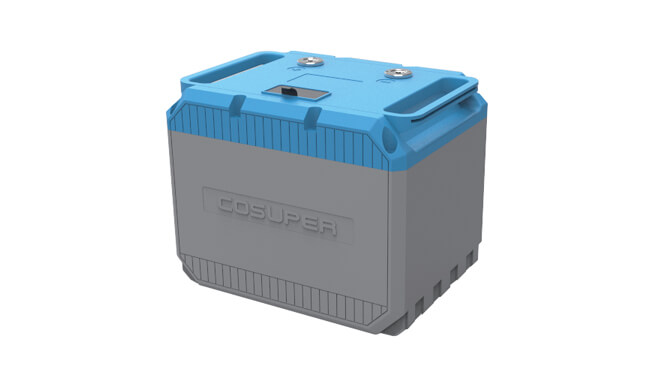

12V 100AH LITHIUM IRON PHOSPHATE BATTERY
Cooper's W12-L series of LiFePO4 batteries have been well designed and developed to provide a reliable, longer life and high power solution for 12V systems. LiFePO4 batteries can last longer and produce almost 10 times the number of cycles than a normal lead acid battery. With high energy density, the volume and weight of lithium iron phosphate batteries are only about one-third of that of lead-acid batteries.
This 12.8V 100Ah Lithium Ion Battery is plug and play for starting or deep cycle applications including RVs, Mobilehomes, Caravans, Ambulances and other applications that require a lightweight lithium battery to replace Lead Acid, Gel or AGM Batteries.
FEATURES OF 12V 100AH LITHIUM IRON PHOSPHATE BATTERY
Designed specifically for motorhome, camper van, caravan, trailer or any other speciality vehicle.
Good performance and a longer life cycle at 5000 cycles @80% DOD
With a much smaller dimension and less weight, it is able to satisfy growing needs of vehicle power supply.
With the BMS, W-L battery is able to provide continuous power supply for on-board use.
TECHNICAL SPECIFICATIONS OF 12V 100AH LITHIUM IRON PHOSPHATE BATTERY
|
Models |
W12-100L |
|
Rated Voltage |
12.8V(11.4~14.4V) |
|
Rated Capacity |
100Ah |
|
Min. Capacity@0.2C |
100Ah |
|
Rated Energy |
1280Wh |
|
Output Efficiency |
>99% |
|
Energy Rentention |
≥90% |
|
Cell Capacity Difference |
≤1% |
|
Discharge |
|
|
Discharge Current |
0~100A |
|
Over Discharge Protect |
110A@8s |
|
Surge-current Protect |
120A@500ms |
|
Low-volt Shut Down |
10.4V@1s |
|
Low-volt Recovery |
12.2V |
|
Output Short Circuit |
≥120A/500ms; |
|
Charge |
|
|
Suggested Charge Current |
20~50A |
|
Max. Charge Current |
50A |
|
Over-charge Alarm/Cut-off |
60A/70A |
|
Suggested Charge/Voltage |
13.6~14.2V |
|
Over-charge Protect |
14.4V |
|
Over-charge Recovery |
13.4V |
|
Temperature |
|
|
Discharge Temperature |
-20~60℃ |
|
Charge Temperature |
0~50℃ |
|
Storage Temperature |
-20~35℃ |
|
BMS Over-temp Shut Down |
60℃ |
|
Mechanical |
|
|
Dimension(mm)(L*W*H) |
370*208*169 |
|
Weight(kg) |
12 |
|
Battery Cell |
Aluminum LFP Cube |
As one of inverter charger manufacturers, we will do our best to meet all the needs of customers.
