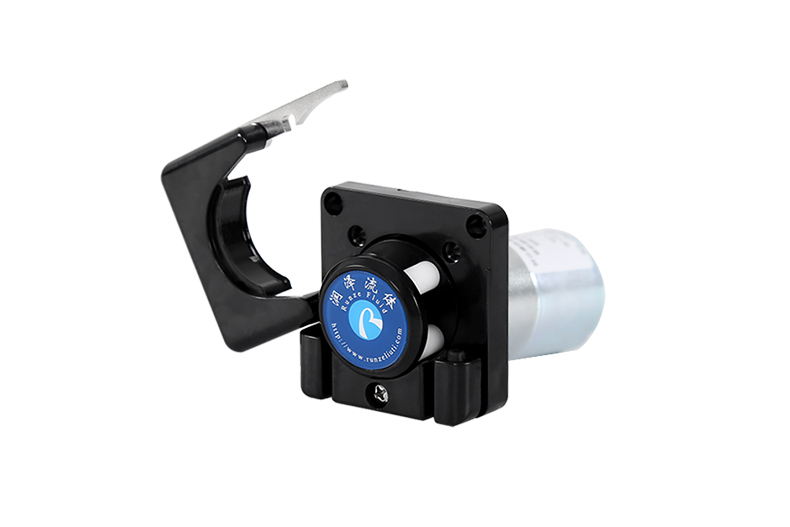

12v Peristaltic Pump
12v peristaltic pump is available of 12V and 24V DC motor for specific system requirement, the peristaltic water pump DC motor can work immediately when triggered from the power supply, low cost, small compact size and low liquid pulse make it best choice for applications that require not too much dispensing precision.
12v Peristaltic Pump Specification
|
Model No. |
ZL12-RZ1030-4-300R ZL24-RZ1030-4-300R |
|
Pump Roller |
POM 4 rollers |
|
Pump Head |
ABS engineering plastic |
|
Motor type |
12V/24V DC motor |
|
Rated Current |
0.15A |
|
Max Power |
15W |
|
Rated Power |
1.8W(12V)/3.6W(24V) |
|
Motor Speed |
300rpm |
|
Flow Range |
0-120ml/min |
|
Tubing Size |
ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
|
Tubing Life |
Silicone≥200H BPT Rubber≥1000H |
|
Pressure Rating |
Up to 2 bar（30psi） |
|
Working Environment |
0-40℃, ＜80％ non-condensing |
|
Max DB |
65db |
|
Suction |
5 meters |
|
Head |
8 meters |
|
Dimension (L*W*H) |
90*57*65mm |
|
Net Weight |
255g |
|
Material |
Features |
Service Life |
|
Silicone |
Food grade, High flexibility Temp. range -4℃ - +180℃ For non-corrosive liquid |
≥200h |
|
Pharmed BPT |
Saint-Gobain, FDA standard Temp. range -51℃- +132℃ Anti weak acid and alkali |
≥1000h |
|
Viton |
MasterFlex, FDA Standard Temp. range -20℃- +260℃ Anti strong acid and alkali |
≥1000h |
1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks
2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed and mild fluids help to extend the service life of tubing
3. Please replace new pump tube regularly to achieve higher precision constant liquid transfer
Now the price of china syringe pump is reasonable, if you have needs, please contact us.
