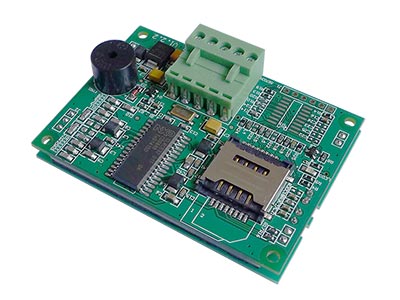

13.56MHz HF RFID Reader Module JMY6801

  • Description
JMY6801 is a series of RFID read/write module with RS232C communication port. JMY6801 has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module.
The module and antenna is integrated and ferrite plate under the antenna, good performance for metallic-around environments to supply more convenience to design structure of the system. The impedance between RF circuit and antenna was tuned by impedance analyzer, and then the module has excellent performance and stability.
  • Main Characteristics
  • Ferrite plate under the antenna, good performance for metal-around environments
  • EMV2010 certification ability in RF protocol part
  • 2 SAM slots, full fill payment system usage
  • USB HID interface, convenience to use on PC
  • Qualifications
  • PCD type: NXP MF RC500, MF RC531, SL RC400, CL RC632
  • PCB Layers：4
  • Working frequency: 13.56MHz
  • Termsed standard: ISO14443A, ISO14443B, ISO15693, ISO7816
  • Anti collision ability: Full function anti collision; be able to set multi-cards or single card
  • Auto detecting card: Termsed, default OFF, could be set
  • SAM slots: 2, T=0 & T=1 9600, 19200, 38400, 55800, 57600, 115200bps
  • Data FLASH: 512 Bytes
  • Power supply: DC 5V (±10%)
  • Interface: USB HID, RS232C, UART or IIC by order
  • Communication speed:
  • IIC: Max.200Kbps
  • UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
  • USB: 2.0 HID class
  • Interface level: UART / IIC 3.3V (5V tolerance)
  • Max. command length:
  • JCP04: 253bytes
  • JCP05: 510bytes
  • Power consumption: Max. 150mA
  • Operating distance: 70mm (M1 typical distance, depending on card quality)
  • Dimension: 70mm * 50mm * 16.5mm
  • Weight: About 120g
  • ISP: Termsed
  • RoHS: By order
  • CE certification: in plan (Jan.17,2015,soon)
  • Operating temperature: -25 to +85°C
  • Storage temperature: -40 to +125°C

Localisation : Room 132, Building 16, Tian Qiao Wan, Xin Hua North Road, TongZhou District, Beijing, 101100 Beijing,
Personne à contacter : Harry Yang, 86 10 69559637
