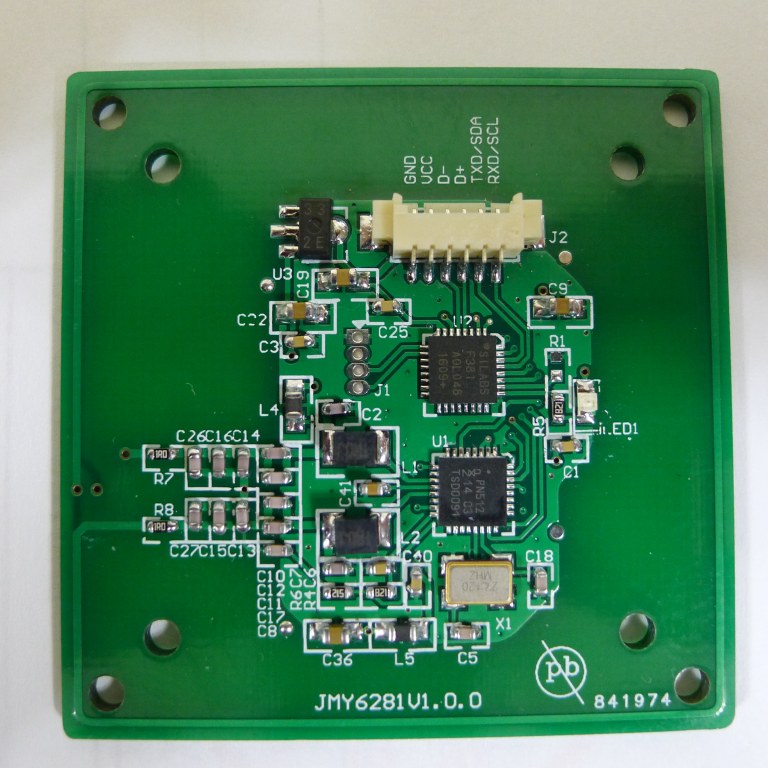

13.56MHz HF RFID Reader Module JMY628

Description
JMY628 is a series of RFID read/write module with UART or IIC communication port. JMY628 has various functions and supports multi ISO/IEC standard of contactless card. The RF protocol is complex, but the designer combined some frequent used command of RF card and then user could operate the cards with full function by sending simple command to the module. The module and antenna is integrated. The impedance between RF circuit and antenna was tuned by impedance analyzer, and then the module has excellent performance and stability.

Main Characteristics
Modules integrated antenna, excellent consistency and stability
Light and slim
USB HID interface, convenience to use on PC

Qualifications
PCD: NXP MF RC522, MF RC523, PN512
PCB Layers：4
Working frequency: 13.56MHz
Termsed standard: ISO14443A, ISO14443B
Anti collision ability: Full function anti collision; be able to set multi-cards or single card
Auto detecting card: Termsed, default OFF, could be set
Data FLASH: 512 Bytes
Power supply: DC 5V (±10%)
Interface: USB HID and UART or IIC by order
Communication speed:
IIC: Max.200Kbps
UART: 19200bps, 9600bps, 38400bps, 57600bps, 115200bps
USB: 2.0 HID class
Max. command length:
JCP04: 253bytes
JCP05: 510bytes
Interface level: UART / IIC: 3.3V (TTL level; 5V tolerance, by pull up)
Power consumption: 100mA
Operating distance: 60mm (M1 typical distance, depending on card quality)
Dimension: 50.8mm * 50.8mm * 7.5mm
Weight: About 20g
ISP: Termsed
RoHS: By order
CE certification: in plan(Jan.17,2015)
Operating temperature: -25 to +85°C
Storage temperature: -40 to +125°C
