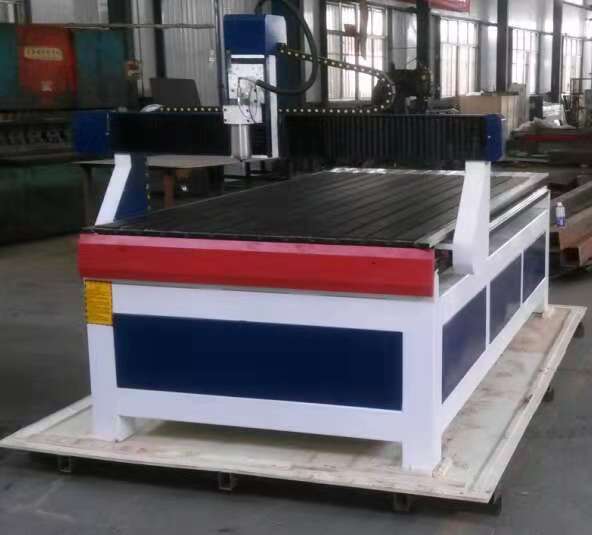

1325A wood cutting machine
Quantité : 100 Prix : 7700USD
Applicable industries:
1. furniture industry: panel furniture, cabinet, sliding door, soft bag, office furniture, wooden door;
2. wooden products: speakers, game cabinets, computer tables, sewing machines, musical instruments;
3. Sheet processing: insulation, plastic parts; PCB; motor car body, bowling track; anti-beta board, epoxy resin, ABS, PP, PE and other carbonized mixture;
Decoration industry: acrylic, PVC, density board, plexiglass, plastics, as well as copper and aluminum and other soft metal plate rounding and cutting processing.
Technical Parameters：
|
Product model |
1325A |
|
XYZ Working dimensions |
1220*2400*200mm |
|
Table Surface |
T-Slot aluminum table |
|
X、Y、Z structer |
X、Y rack pinion, Z ball screw |
|
Machine body |
welded steel tube structure |
|
Guideway XYZ-axis |
25 linear guideway |
|
inverter |
Best or Fuling |
|
machine power（without spindle） |
3000W |
|
Spindle power |
4.5KW |
|
spindle cooling |
water cooled （or air cooling） |
|
Spindle speed: |
0-24000r/min |
|
Blade diameter: |
Ø3.17mm-Ø12.7mm |
|
Max. Speed: |
25m/min |
|
Working speed |
15m/min |
|
Working Voltage |
380V/50HZ |
|
Drive Motors |
leadshine or YAKO stepper |
|
Control system |
Ncstudio |
|
command language |
G代码、ENG、PLT、UG、HPGL、mmg |
|
clamping |
clamping plate |
|
Electrical parts |
Schneider or Delixi |
|
Net weight |
1200kg |
|
overall dimensions |
3200*1840*1650mm |
|
packing |
wooden case |
Personne à contacter : Amy Li, +8618769793523
