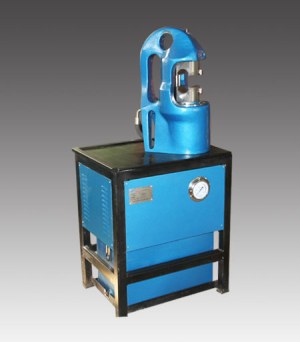

150ton CNC Hydraulic Wire Rope Pressing Machine For Sale
Quantité : 1set Prix : 6200USD
- Place of Origin: Hebei, China (Mainland)
- Brand Name: Q T C machine
- Model Number: YT150 pressing machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Max.capacity: 1500kN
- Multi-bite: 20mm
- Swage range with one bite: 6mm-16mm
- Power: 4Kw
- Automatic grade: semi-automatic
- Voltage: 380v or as request
- CNC or not: CNC machine
- Weight: 400kg
- Driven power: hydraulic
Packaging & Delivery
| Packaging Details: | inner: film wrapped outside: standard export wooden case or as requst |
|---|---|
| Delivery Detail: | 25 days |

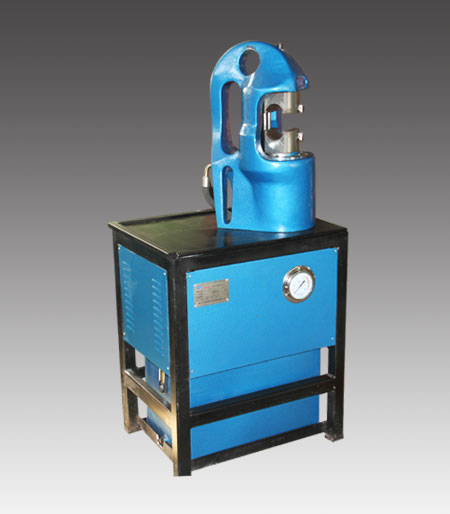

150T CNC C-type Hydraulic Wire Rope Pressing Machine For Sale
|
1 |
Machine model |
YT150 |
|
2 |
Type |
C |
|
3 |
Max.swage |
20mm |
|
4 |
Multi–swage |
16mm |
|
5 |
Voltage |
380V |
|
6 |
Frequency |
50Hz |
|
7 |
Power |
4kw |
|
8 |
Capacity |
1500kN |
|
9 |
Oil pressure |
62Mpa/7Mpa |
|
10 |
Piston working stroke |
50mm |
|
11 |
Upstroke velocity |
35mm/s |
|
12 |
High |
1400mm |
|
13 |
Width |
530mm |
|
14 |
Length |
900mm |
|
15 |
Weight |
≈400kg |
Founded in 2004,Baoding Qitong Rigging Equipment Co., Ltd. is a senior rigging equipment production enterprise integrating equipment research and development, design, production, sales and after-sales services.The company has the total assets of about RMB 15million,and more than 50employees,including 8for design and development,9for after-sale services; and also has two modern plants,No.1 mainly for sling and rigging products manufacturing while No.2mainly for rigging equipment manufacturing.
Our Services
1. 24 hour technical support.
2. over sea service available.
3. 1 year warranty
4. OEM service for free.
1.The certificates
CE TUV and other certification can be applied for as request
2.The payment terms
T/T L/C or others can be discussed
3.The delivery time
30 days after confirmation
4. Are you a factory
we are factory in China since 2004. Welcome to visit our company
5.Contact information
Name: Echo Fan
Phone: +86-15028292364
Tel : +86-312-3159533
Fax : +86-312-3139533
Website : www.bdqitong.cn
