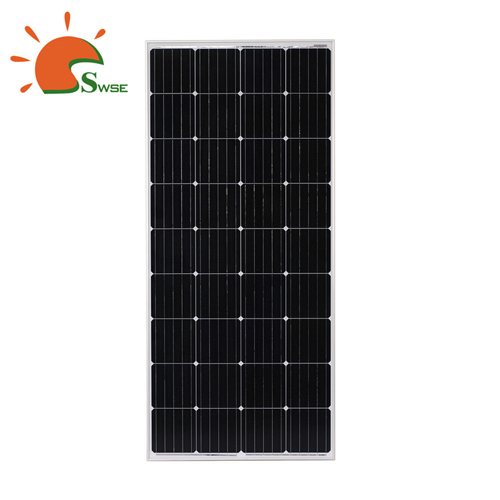

150W Monocrystalline Solar Panel
Sunworth, as one of the professional solar equipment manufacturers and solar electric system providers, implementing strict international standard quality management system ISO 9001: 2015 and ISO14001: 2015.
150W High Efficiency Monocrystalline Solar Panel
150~190W 24V monocrystalline solar PV module, the open-circuit voltage is 24.31V, the solar panel' maximum voltage reaches 20.10V. The short-circuit current is 9.79A, the solar panel' maximum current reaches 9.46A. The most important, the module efficiency up to 19.31%. This type of 150 watt monocrystalline solar panel in Sunworth is of high quality and cost-effective 150 watt mono solar panel price in this field. Besides, 150 watt 12 volt monocrystalline solar panel is also of high quality.
Advantages of 150W Monocrystalline Solar Panel
- Old brand mono solar panel 150 watt manufacturer.
- Higher photoelectric conversion efficiency than a poly solar module.
- Strong PID resistance.
- Passed various harsh environmental tests, like salt spray, ammonia and sand storm corrosion tests.
- 100% EL detection before and after lamination.
Product Parameters of 150W Monocrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW150M-36 |
SW170M-36 |
SW190M-36 |
|
Max Power |
150W |
170W |
190W |
|
Max Voltage |
18.50V |
19.96V |
20.16V |
|
Max Current |
8.11A |
8.52A |
9.43A |
|
Open-circuit Voltage |
22.55V |
23.31V |
24.69V |
|
Short-circuit Current |
8.52A |
9.30A |
9.79A |
|
Module Efficiency |
15.24% |
17.27% |
19.31% |
|
Operating Temperature |
-40℃~+85℃ |
||
|
Max System Voltage |
1000Vdc |
||
|
Max Series Fuse Rating |
15A |
||
|
Power Tolerance |
±3% |
||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
156.75*156.75mm |
156.75*156.75mm |
156.75*156.75mm |
|
Cell amounts |
36(4*9) |
36(4*9) |
36(4*9) |
|
Weight |
10.6kg |
10.6kg |
10.6kg |
|
Module Dimensions |
665*1480*30mm |
665*1480*30mm |
665*1480*30mm |
|
Front Cover |
3.2mm tempered glass |
||
|
Frame Material |
Anodized aluminium alloy |
||
|
Junction Box |
IP65 rated |
||
|
Output Cables |
4mm2, Length 700mm+MC4 |
||
Packing
|
Power |
150W |
170W |
190W |
|||
|
Packing |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
|
Pieces/Carton |
35 |
35 |
35 |
35 |
35 |
35 |
|
Pieces/Container |
602 |
1575 |
602 |
1575 |
602 |
1575 |
