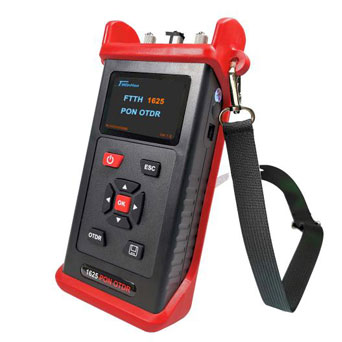

1625 FTTH PON OTDR
This tester is developed and designed by adopting a single wavelength 1625nm, based on the full understanding of FTTH network. It replaces the PON otdr ftth with multi-wavelength in one (1310/1550/1625) on the market, reduces purchase and operation costs, completely meets the demand of rapid troubleshooting from end users during maintenance work. It is one user-friendly and professional FTTH tester.
Product Parameters of TWH-1625 & TWH-6118 FTTH PON OTDR
|
Test Dead Zone |
≤12m |
|
Reflection Event Dead Zone |
≤10m |
|
Attenuation Event Dead Zone |
≤30m |
|
Distance Resolution |
1m |
|
Pulse Width |
10ns-500ns |
|
Distance Uncertainty |
±(0.8m ± 0.01% * Test distance ± Resolution) |
|
Loss Event Threshold |
＞0.8dB |
|
Loss Resolution |
0.1dB |
|
Type of Connector |
FC/PC or SC/PC |
|
OPM Wavelength |
(850,1300,1310,1490,1550,1625)nm |
|
VFL |
10mw (Standard) 20mw(Option) |
|
Storage Item |
100 |
|
Display |
2.8” TFT Color LCD Screen |
|
Port |
Mini USB |
|
Battery |
5# AA Battery, Rechargeable Battery; USD Power Supply |
|
Working Hours |
Standby>15h, Measurement>6h |
|
Dimension |
210mm*120mm*55mm(With sheath) |
|
Weight |
About 450g |
|
Storage Temperature |
-20 -- +60 ℃, ＜90%RH |
|
Working Temperature |
-10 -- +50 ℃, ＜90%RH |
For more information about fiber optic products, please feel free to contact us!
