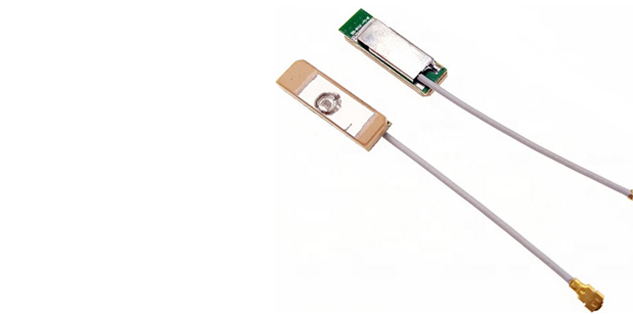

1662 GPS Active Internal Antenna
16*6*2MM internal active GPS Antenna, small patch mini ceramic antenna GPS, high gain 20dBi active internal antenna GPS with IPEX connector, the internal GPS antenna can do GPS, Glonass, Galileo and Beidou frequency according to your request, use for charging pile, vehicle, and so on.
Features of 16*6*2 GPS Active Internal Antenna
1575.42MHz GNSS
Ceramic+PCB
Omni direction coverage
20dBi Active GPS
Custom antenna cable length
Specification of 16*6*2 GPS Active Internal Antenna
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
1575.42MHz |
|
Gain |
20dBi |
|
|
V.S.W.R |
≤1.9 |
|
|
Impedance |
50Ω |
|
|
Antenna size |
25*25/18*18/15*15/12*12mm |
|
|
Polarization |
Linear |
|
|
Mechanical |
Inner Material |
Ceramic |
|
Connector type |
IPEX/SMA or customizable |
|
|
Mounting Method |
IPEX |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Suzhou Cowin Antenna Electronics Co., Ltd is a professional 5g smart antenna company. We provide Cellular Antenna, WIFI Bluetooth Antenna, active gnss antenna, active whip antenna, gnss active antenna, active antenna, active directional antenna, wideband active antenna and so on. Want to know more? Please contact us.
