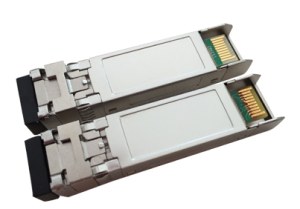

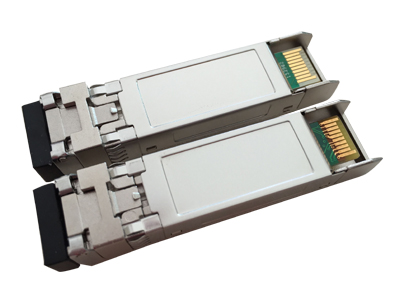

16G SFP+ LW

16G SFP+ LW16G Fibre Channel SFP+ TransceiverProduct Features● Up to 14.025Gb/s bi-directional data links ● Electrical interface specifications per SFF-8431 ● Management interface specifications per SFF-8432 and SFF-8472 ● SFP+ MSA package with duplex LC connector ● Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s ● Uncooled 1310nm DFB Laser ● Up to 10 km on 9/125um SMF ● Single +3.3V power supply ● Class 1 laser safety certified ● 1.5W maximum power consumption with established link ● Operating temperature Options (Commercial) 0°C to +70°C ● RoHS CompliantApplications ● Tri Rate 4.25 / 8.5 / 14.025 Gb/s Fibre Channel RateDescriptionsThis SFP+ transceivers,Website: http://www.dwdmsfp.net, according to 16 Gigabit Small Form Factor Pluggable "SFP+" Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 3.0 and SFF-8472 Rev. 11.0, are designed for use in Fiber Channel links up to 14.025Gb/s data rate and up to 10km link length. They are compatible with FC-PI-5 Rev. 6.10 and SFF-8432.we offer commercial operating temperature options.Ordering Information for 16G SFP+ LW (16G SFP+ LR)Part Number Transmitter Output Power Receiver OMA Sensitivity @14.025G Reach Temp DDM RoHS 1310nm DFB-5 ~ +2dBmPIN<63uw10km0~70°C AvailableCompliantTransmitter Optical Characteristics ParameterSymbol Minimum Typical Maximum Unit Notes Launch Optical Power, 14.025 Gb/sPo,RH-5-2dBm1, 2Launch Optical Power, 4.25 Gb/s, 8.5 Gb/sPo,RL-5--1dBm3Center Wavelength Rangeλc129513101325nm4Optical Modulation Amplitude @ 4.25, 8.5Gb/sOMA290--uW4, 6Optical Modulation Amplitude @ 14.025 Gb/sOMA631--uW6Transmitter and Dispersion Penalty @ 8.5 Gb/sTDP--3.2dB7Transmitter and Dispersion Penalty @ 14.025 Gb/sTDP--4.4dB7Spectral Width Δλ--1nm4, 5Optical Rise/Fall Time @ 4.25 Gb/str/tf90ps8Optical Return Loss ToleranceORLT--12dB-Pout @TX-Disable AssertedPoff---30dBm9Notes: 1. Class 1 Laser Safety per FDA/CDRH and EN (IEC) 60825 regulations.2. High Bandwidth Mode. Class 1 Laser Safety per FDA/CDRH and EN (IEC) 60825 regulations.3. Low Bandwidth Mode. Class 1 Laser Safety per FDA/CDRH and EN (IEC) 60825 regulations.4. Also specified to meet curves in FC-PI-5 Rev 6.10 Figures 23, 24, and 25, which allow trade-off between wavelength, spectral width and OMA for 4.25 and 8.5 Gb/s operation.5. 20dB spectral width.6. Equivalent extinction ratio specification for Fibre Channel. Allows smaller ER at higher average power.7. For 14.025 and 8.5 Gb/s operation, Jitter values for gamma T and gamma R are controlled by TDP.8. Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E), FC 4x eye masks when filtered.9. The optical power is launched into 9/125µm SMF.Receiver Optical Characteristics Parameter Symbol Minimum Typical Maximum Unit Notes Center Wavelengthλc126013101370nm-Unstress Receiver OMA Sensitivity = 4.25 Gb/sRxSENS--29uW1Unstress Receiver OMA Sensitivity = 8.5 Gb/sRxSENS--42uW1Unstress Receiver OMA Sensitivity = 14.025 Gb/sRxSENS--63uW2Receiver Overload (Pavg)POL2--dBmOptical Return LossORL12--dB-LOS De-AssertLOSD---19dBm-LOS AssertLOSA-30--dBm-LOS Hysteresis-0.5--dB-Notes: 1.Measured with PRBS 27-1 at 10-12 BER. 2.Measured with PRBS 231-1 at 10-12 BER.
