16M Articulated Work Platform Compact Boom Lift
Prix : 50-150000 USD
We are professional 16M Articulated Work Platform Compact Boom Lift supplier and factory in China. We can produce articulating boom lift according to your requirements.
Product Features

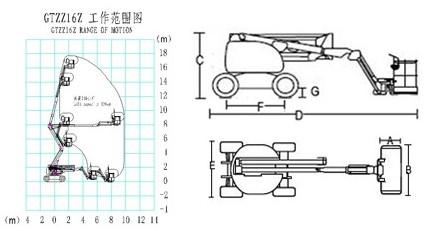

16M Articulated Work Platform Compact Boom Lift Measurements Specifications
|
MODEL |
GTZZ 16Z |
||
|
MEASUREMENTS |
Metric |
US |
|
|
Working height maximum * |
17.7m |
58ft |
|
|
Platform height maximum |
16.0m |
52ft6in |
|
|
Horizontal reach maximum ** |
9.5m |
31ft2in |
|
|
A |
Platform length-8ftmodel |
0.76 m |
2ft6in |
|
B |
Platform width-8ftmodel |
1.83m |
6ft |
|
C |
Height-stowed |
2.38 m |
7ft9in |
|
D |
Length-stowed |
7.68m |
25ft2in |
|
E |
Width |
2.29m |
7ft6in |
|
F |
Wheelbase |
2.2m |
7ft2in |
|
G |
Ground clearance-center |
0.33m |
1ft |
|
PRODUCTIVITY |
|||
|
Lift capacity (restricted) |
230kg |
507Ibs |
|
|
Platform rotation |
180° |
||
|
Turntable Swing |
360°continuousss 355°non-continuou |
||
|
Turntable tail swing |
0 |
||
|
Drive speed -stowed |
6.3km/h |
3.9mph |
|
|
Gradeability -stowed (2WD) |
30% |
||
|
Gradeability -stowed (4WD) |
45% |
||
|
Turning radius - inside |
3.0m |
9ft10in |
|
|
Turning radius –outside Turning radius - axle extended outside |
5.2m |
17ft |
|
|
Controls |
12V DC Proportional |
||
|
POWER |
|||
|
Power source |
Cummins B3.3-C60(45kw) |
||
|
Auxiliary power unit |
12V DC |
||
|
Hydraulic tank capacity |
140L |
||
|
Fuel tank capacity |
100L |
||
|
WEIGHT |
|||
|
2WD |
7657kg |
16880lbs |
|
|
STANDARDS COMPLIANCE EN280, JG/T5101, Q/ADZV001-2008 |
|||
