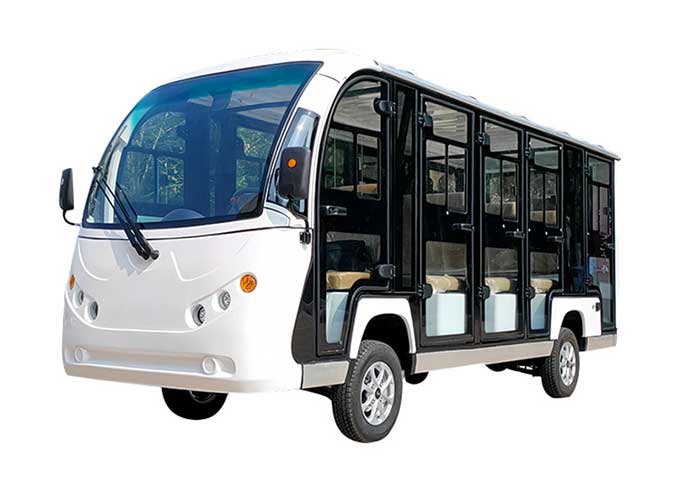

17 Seater Electric Shuttle Bus Closed Type
Quantité : 100000 uni Prix : USD: USD 3,000/vehic
17 seats, equipped with a high-power electric drive system, the climbing ability exceeds 47%, and it can reach full-load slope start and stop. Fully enclosed body, supports optional air conditioning, solar panels.
Specification of 17-Seater Electric Shuttle Vehicles
|
Technical Parameters |
|
|
Overall Dimension |
5900*1500*2000mm |
|
Passengers Capacity |
17 |
|
Max. Speed |
30km/h |
|
Max. Travelling Range |
80-100km |
|
Slope Climbing Capacity |
15% |
|
Turning Radius |
6.5m |
|
Ground Clearance |
145mm |
|
Brake Distance |
5m |
|
Wheelbase |
3600mm |
|
Front/Rear Tread |
1300/1300mm |
|
Weight |
1020kg |
|
Electric System |
|
|
Motor |
5kW AC |
|
Controller |
48V, 400A |
|
Battery Type |
72V,100Ah, 6pcs |
|
Steering |
Continuously variable transmission system |
|
Charger |
Intelligent high-frequency car charger |
|
Charging Time |
8 hours |
|
Motivation Control |
|
|
Braking System |
Front disc and rear drum brake, dual-circuit hydraulic |
|
brake, vacuum brake booster pump |
|
|
Front-axle And Suspension |
Front axle MacPherson independent suspension |
|
coil spring |
|
|
Rear-axle And Suspension |
Integral rear axle leaf spring |
|
Tire |
155R12, Aluminum alloy rim |
|
Exterior |
|
|
Dashboard |
Digital display LCD instrument |
|
(including voltage, vehicle speed, mileage, light, front and rear reversing signals, etc.) |
|
|
Light |
Combined headlights, combined rear taillights |
|
Seat |
High-density sponge + durable leather fabric |
|
Body Material |
Steel frame + ABS engineering plastic molding material |
After 10 years of accumulation, we, one of the professional electric golf carts manufacturers, have an outstanding development and design team, which can perfectly realize the customer's OEM/ODM development requirements quickly and at low cost.
Now the electric golf car price is reasonable, if you are interested, please leave us a message.
