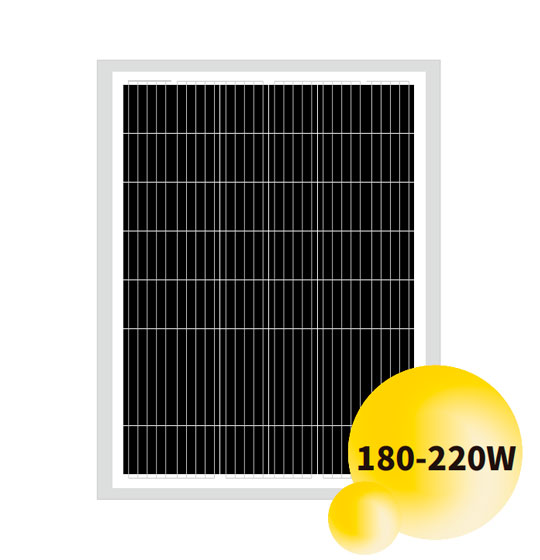

180W-220W Poly Solar Panel With 48 Pieces Solar Cells
The wattage of the solar panel composed of 48 polycrystalline cells is 180w, 185w, 190w, 195w, 200w, 210w, and 220w. It is most often used for military and civilian life in remote areas without electricity, such as plateaus, islands, pastoral areas, border posts, etc. electricity, as well as fiber optic cable maintenance stations, broadcasting/communication/paging power systems, etc., are widely used, and are equipped with waterproof junction boxes to reduce the possibility of short circuits and are not affected by environmental factors. The goal of Solaborn solar panels is a quality follow-up, the manufacturer directly provides high-quality services, and any problem you have will get a satisfactory solution.
Parameter Of 180W-220W Poly Solar Panel With 48 Pieces Solar Cells
Electrical Characteristics Of 180W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-180 |
|
Maximum Power (W) |
180 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
24.19 |
|
Optimum Operating Current (IMP) |
7.44 |
|
Open Circuit Voltage (VOC) |
29.09 |
|
Short Circuit Current (ISC) |
7.96 |
|
Module Efficiency (%) |
13.3 |
Electrical Characteristics Of 185W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-185 |
|
Maximum Power (W) |
185 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
24.35 |
|
Optimum Operating Current (IMP) |
7.6 |
|
Open Circuit Voltage (VOC) |
28.98 |
|
Short Circuit Current (ISC) |
8.17 |
|
Module Efficiency (%) |
14.35 |
Electrical Characteristics Of 190W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-190 |
|
Maximum Power (W) |
190 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
24.41 |
|
Optimum Operating Current (IMP) |
7.79 |
|
Open Circuit Voltage (VOC) |
28.98 |
|
Short Circuit Current (ISC) |
8.17 |
|
Module Efficiency (%) |
14.35 |
Electrical Characteristics Of 195W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-195 |
|
Maximum Power (W) |
195 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
24.45 |
|
Optimum Operating Current (IMP) |
7.96 |
|
Open Circuit Voltage (VOC) |
29.1 |
|
Short Circuit Current (ISC) |
8.65 |
|
Module Efficiency (%) |
14.62 |
Electrical Characteristics Of 200W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-200 |
|
Maximum Power (W) |
200 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
24.56 |
|
Optimum Operating Current (IMP) |
8.15 |
|
Open Circuit Voltage (VOC) |
29.59 |
|
Short Circuit Current (ISC) |
8.86 |
|
Module Efficiency (%) |
12.73 |
Electrical Characteristics Of 210W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-210 |
|
Maximum Power (W) |
210 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
24.96 |
|
Optimum Operating Current (IMP) |
8.41 |
|
Open Circuit Voltage (VOC) |
29.71 |
|
Short Circuit Current (ISC) |
9.14 |
|
Module Efficiency (%) |
15.56 |
Electrical Characteristics Of 220W Poly Solar Panel With 48 Pieces Solar Cells
|
Module Type |
SLB48P6-220 |
|
Maximum Power (W) |
220 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
25.11 |
|
Optimum Operating Current (IMP) |
8.76 |
|
Open Circuit Voltage (VOC) |
20.25 |
|
Short Circuit Current (ISC) |
9.62 |
|
Module Efficiency (%) |
13.91 |
As one of the most professional solar products manufacturers in china, we provide 190w solar panels for sale, solar panel 185w, solar panel 175w, solar energy solutions and etc. Want to know the 195w solar panel price, contact us.
