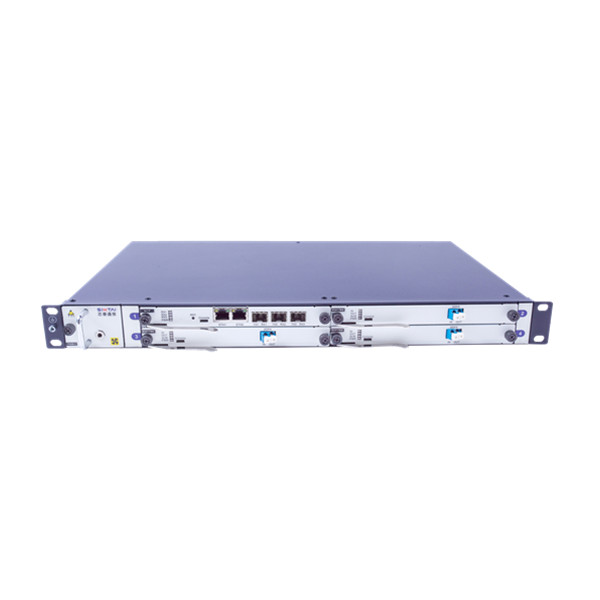

1U EDFA Equipment
The main function of the EDFA optical amplification subsystem launched by Guangzhou Sintai Co., Ltd is to compensate the signal's optical power in the transmission link, which can finally extend the optical signal transmission distance.
It can be divided into BA, LA, and PA based on the application scene. BA is usually used at the transmitting end to boost the output optical power of the system. LA is usually used at the repeater section to compensate for the power loss of the line. PA is usually used at the receiving end of the system to improve the input optical power.
The EDFA can amplify all the input optical signals by using the erbium-doped fiber as the gain medium and using the 980nm or 1480nm pump laser as the pump source with one-stage or two-stage amplification. It's one of the most indispensable and important parts of the DWDM system, high-speed transmission system, and all-optical network in the future.
1U EDFA Equipment Feature
Support the unified amplification of the 48CH/96CH DWDM signal of the C band.
Automatic gain control(AGC).
Flat gain and low noise figure.
Support built-in VOA and automatic adjustment of optical power.
Support two-stage amplification with OADM or DCF modules to be configured in the line.
1U pluggable rack, flexible capacity configuration.
Support AC power 220V, DC power -48V, and 1+1 power input protection.
Free of configuration installation and support plug and play.
Support multi-kinds of graphical interface network management, such as SNMP, Web.
1U EDFA Equipment Specification
Item |
Parameter |
Remark |
||
Working wavelength range |
Stand type: 1529nm~1561nm, extended type: 1528nm~1568nm |
|
||
EDFA type |
BA |
LA |
PA |
|
Min input power (typical) |
-22dBm |
-30dBm |
-32dBm |
|
Saturation output power (typical) |
+20dBm |
+20dBm |
+16dBm |
To be customized with max +23dBm |
Rated gain (typical) |
17dB |
25dB |
20dB |
To be customized |
Gain flatness |
≤1.5dB |
|
||
Noise figure |
≤5.5 dB |
|
||
Working temperature range |
-10℃~60℃ |
|
||
Working humidity range |
5%~95% no condensation |
|
||
Storage temperature |
-40℃~85℃ |
|
||
Equipment dimension |
1U: 44 mm (H)×442 mm (W)×280 mm (D) |
|
||
Network management |
Support multi-kinds of graphical interface network management, such as SNMP and Web |
Optional |
||
Special technology |
Built-in VOA with automatic adjustment of optical power |
Optional |
||
Optical interface |
LC/UPC |
|
||
Power supply |
AC: 90 ~ 260V or DC: -36 ~ -72 V (1+1 power input backup) |
|
||
Typical power consumption |
Full configuration<60W</span> |
|
||
Heat dissipation |
Fan cooling |
|
||
MTBF |
>100000 hours |
|
For more information about optical communication devices, please feel free to contact us!
