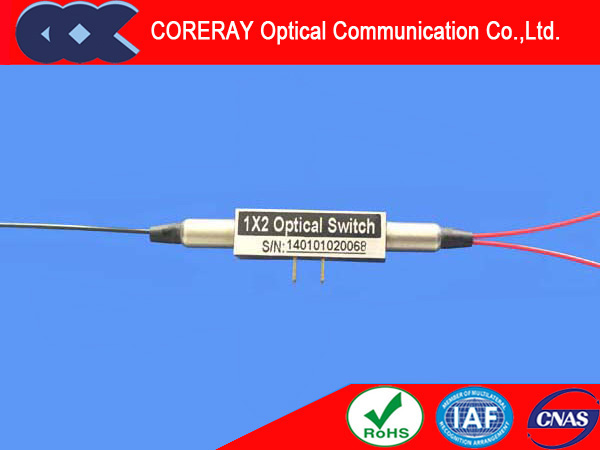

1x1 1x2 Magneto-Optical Switch single mode
Quantité : 1 Prix : usd
Features of optical switch
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application of 1x2 optical switch
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
Specification of optical switch
|
Parameters |
|
SOSW-1×2 |
|
Wavelength Range |
nm |
1295~1325,1520~1580 |
|
Testing Wavelength |
nm |
1310/1550 |
|
Insertion Loss |
dB |
Typ: 0.7 ,Max: 1.0 |
|
Return Loss |
dB |
≥50 |
|
Channel Cross Talk |
dB |
≥45 |
|
PDL |
dB |
≤0.10 |
|
Polarization Mode Dispersion |
ps |
≤0.20 |
|
TDL |
dB |
≤0.25 |
|
Power Handling |
mW |
300 |
|
Switching Speed |
ms |
50~200 |
|
Repeatability |
dB |
2K |
|
Operating Temperature |
°C |
-40~+85 |
|
Storage Temperature |
°C |
-40~+85 |
|
Dimensions |
mm |
(L)58.2×(W)8.4×(H)8.4(±0.2) |
