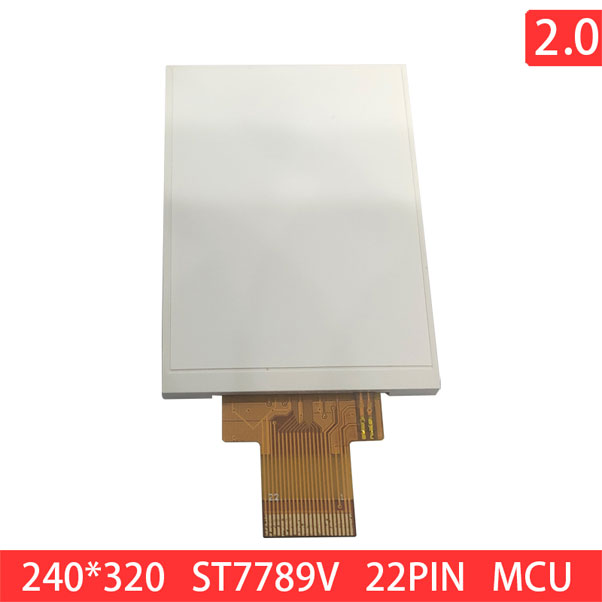

2.0 Inch 240X320 QVGA 22PIN MCU IPS 450nits TFT LCD Display Module
Quantité : 500pcs/day Prix : 30USD-300USD
A simple 2.0″, The brightness is 450cd/m2 with contrast ratio 800: 1, IPS Module, Transmissive, All Viewing Direction, Normal Black with 240 x 320 dots. Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment, etc.
General Specifications of 2.0 Inch TFT 240x320 QVGA 22PIN MCU IPS 450nits
|
No. |
Item |
Specification |
|
1 |
LCD size |
2.0inch |
|
2 |
Resolution |
240(RGB)×320 |
|
3 |
Active area |
30.66(W)×40.8(H)mm |
|
4 |
Module size |
36.2(W)×51.8(H)×2.45(T)(Exclude FPC)mm |
|
5 |
Interface |
MCU |
|
6 |
Viewing Direction |
All |
|
7 |
Polarizer |
Transmissive |
|
8 |
Contrast Ratio |
800: 01: 00 |
|
9 |
Brightness |
450cd/m² |
|
10 |
Back Light |
White |
|
11 |
Pixel arrangement |
RGB vertical stripe |
If you have needs to buy a 22 pin lcd display, please contact us.
As a tft module factory, we can offer kinds of tft lcd module for sale, if you have needs, please contact us.
