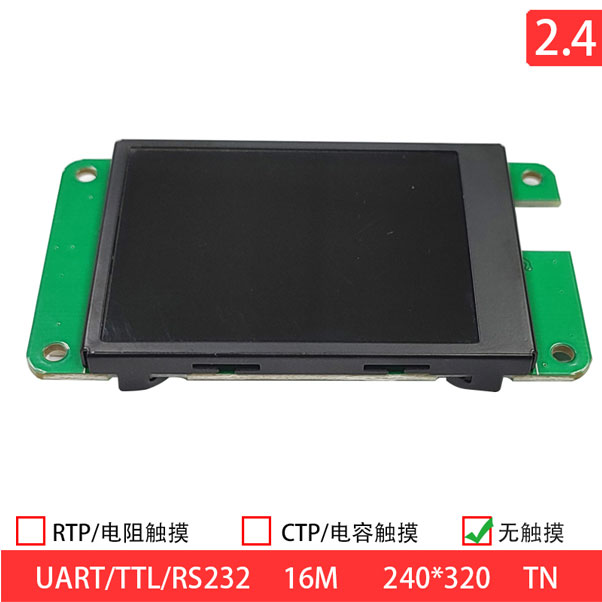

2.4 Inch 240x320 QVGA 6PIN UART TN 220nits TFT LCD Display Module
Quantité : 500pcs/day Prix : 30USD-300USD
EX02402-A01 is a 2.4 inch, UART TN TFT LCD module . The module dimension is 44.02(W)×78.11(H); active area 36.72(W)×48.96(H) mm (2.4"diagonal). Its resolution is 240x320 pixels (width 240pixels x height 320 pixels) . This 2.4 inch tft lcd display module has built-in IC ST7789V supporting RS232/TTL interface. The brightness is 220 cd/m2 . Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.This single-display module is suitable for use in industry, household appliances, toys and medical treatment,etc.
General Specifications of 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits
|
No. |
Item |
Specification |
|
1 |
LCD size |
2.4 inch |
|
2 |
Resolution |
240(RGB)×320 |
|
3 |
Active area |
36.72(W)×48.96(H) |
|
4 |
Module size |
44.02(W)×78.11(H)×7.56(T)mm |
|
5 |
Viewing Direction |
12 O'CLOCK |
|
6 |
Driver IC |
ST7789V |
|
7 |
Interface |
UART RS232/TTL |
|
8 |
Brightness |
220cd/m2 |
|
9 |
color |
250cd/m2 |
|
10 |
Operating temperature |
-20℃-70℃ |
|
11 |
Storage temperature |
-30℃~+80℃ |
Outline Dimension of 2.4 Inch 240x320 QVGA 6PIN UART TN 220nits
As a professional tft lcd supplier, we provide tft lcd display, 2.4 inch lcd, 2.4 inch lcd display, 2.4 inch tft, 2.4 inch display, 2.4 inch tft display, 2.4 inch tft lcd, china tft display, etc. For more information, please feel free to contact us!
Personne à contacter : tech exson, 0755 2101 8006
