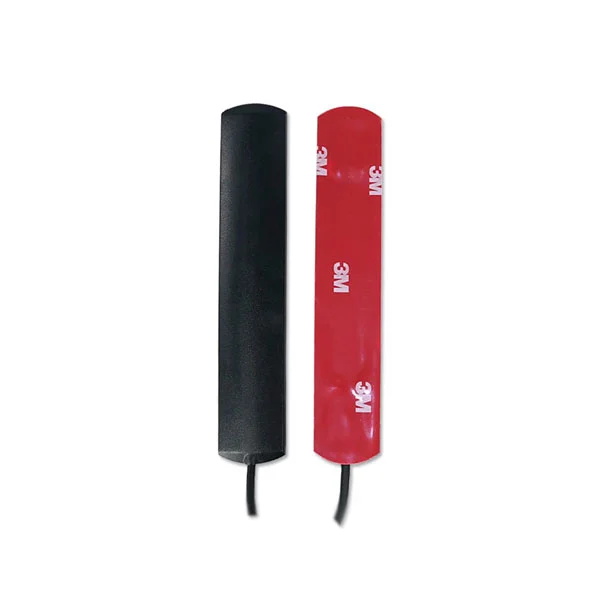

2.4GHz 3dBi Black Omni Antenna Magnetic Mount Vehicle Mobile Antenna (AC-Q24M03)
2.4 ghz high gain directional antenna delivers marked improvements in efficiency and gain across all common frequencies（2400-2483MHz) in use for WIFI and Wireless bands.
Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance.
After capturing the signal, the installation method of automatic pasting is adopted to prevent it from being easily moved, ensuring the reception effect.
Specification of 2.4 ghz monopole antenna
|
Electrical |
|
|
Frequency Range |
2400-2483MHz |
|
Band width |
83MHz |
|
Gain |
3dBi |
|
V.S.W.R |
≤2.0 |
|
Radiation |
Omni-Direction |
|
Polarization |
Vertical |
|
Maximum Input Power |
50W |
|
Impedance |
50Ώ |
|
Connector |
SMA Male(can be customization) |
|
Cable Type |
RG174 |
|
Cable Length |
3M |
|
Antenna Radome Material |
ABS |
|
Mounting way |
Self Adhesive |
|
Mechanical |
|
|
Dimensions |
22x115mm |
|
Weight |
45g |
|
Operating Temperature |
-40℃ to+70℃ |
|
RoHS Compliant |
YES |
Features of 2.4 ghz loop antenna
01
This antenna can be work for U-NII and ISM applications.
02
2.4 GHz antenna working for ISM applications such as Internet of Things (IoT) devices.
03
Antenna Compatible with 2.4GHz FPV Camera Monitor, FPV Drone Racing Quadcopeter Controller.
For more information about helical rf antenna, please feel free to contact us!
