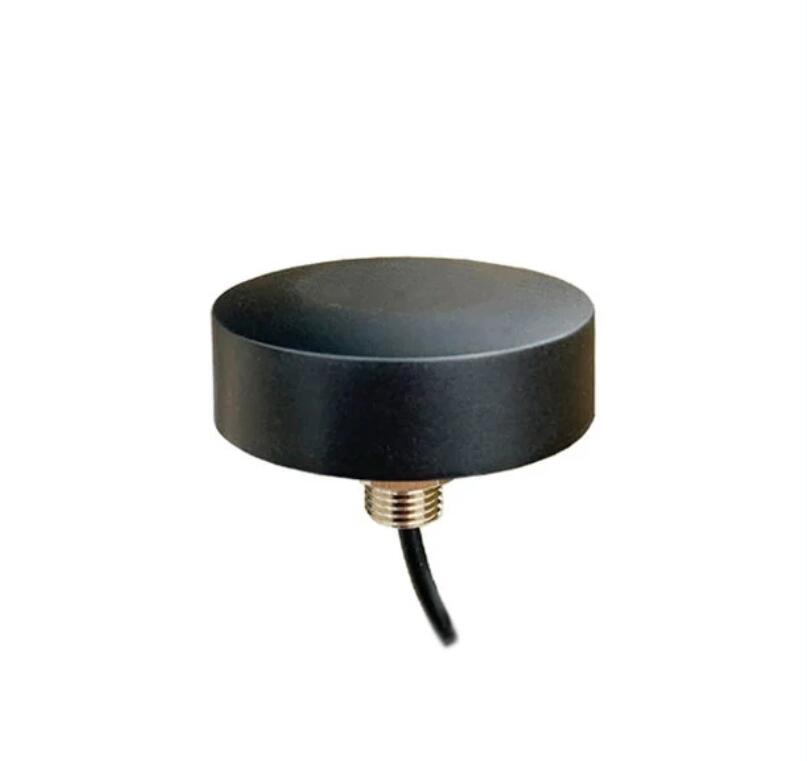

2.4GHz Omni-direction Screw Mount Antenna (AC-Q24M08)
2.4 ghz antenna delivers marked improvements in efficiency and gain across all common frequencies（2400-2483MHz) in use for WIFI and Wireless bands.
Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance.
The antenna should be mounted in a location that is not obstructed by other metallic surfaces which could interfere with signal transmission and reception.
Specification of 2.4 ghz circular patch antenna
|
Electrical |
|
|
Frequency Range |
2400-2483MHz |
|
Band width |
83MHz |
|
Gain |
2.15dBi |
|
V.S.W.R |
≤2.0 |
|
Radiation |
Omni-Direction |
|
Polarization |
Vertical |
|
Maximum Input Power |
50W |
|
Impedance |
50Ώ |
|
Connector |
SMA Male(can be customization) |
|
Cable Type |
RG174 |
|
Cable Length |
3M |
|
Antenna Radome Material |
ABS |
|
Mounting way |
Screw Mount |
|
Mechanical |
|
|
Dimensions |
Φ47x14mm |
|
Weight |
35g |
|
Operating Temperature |
-40℃ to+70℃ |
|
RoHS Compliant |
YES |
Features of 2.4 5 ghz antenna
01
Antenna Compatible with WiFi Adapter, Desktop PC Wireless Mini PCI Express PCIE Network Card Adapter.
02
2.4 GHz antenna working for ISM applications such as Sensing and remote monitoring.
03
The antenna terminates in an SMA plug (male pin).
We provide china rf antenna, 2.4 g signal booster, 2.4 ghz 5ghz antenna, 2.4 ghz antenna outdoor, etc. For more about 2.4 ghz antenna range and 2.4 ghz antenna types, contact us.
