2.7V High Temperature Series
Kamcap is one of the leading supercapacitor manufacturers in China. We supply high-quality ultracapacitors, including coin type supercapacitor, winding type supercapacitor, combined type supercap capacitor, module supercaps, high temperature supercap and hybrid capacitor.
2.7V High Temperature Series
2.7v high temperature 2.7 v supercapacitor supplied by Kamcap 5.5 v 1.0 f can realize work under high temperature. The following information can help you know more about this product. If you need to buy super capacitor, please contact us and our sales team can give you more suggestion.
Technical data
HT Series
Performance characteristics: High temperature 85 ° C series
Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Series specification sheet
|
Series name |
HT Series Supercaps |
|
Type name |
HT -2R7 |
|
Rated voltage VR |
2.7V |
|
Surge voltage |
2.85V |
|
Capacity range |
1.0F~100F |
|
Operating temperature range |
-40 ~ +85℃ |
|
Product life |
Normal temperature cycle life: 25 ° C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
|
High temperature endurance life: 85 ° C, keep 2.7V, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times |
Product performance list
HT Series
|
Model |
Capacity F |
ESR mΩ |

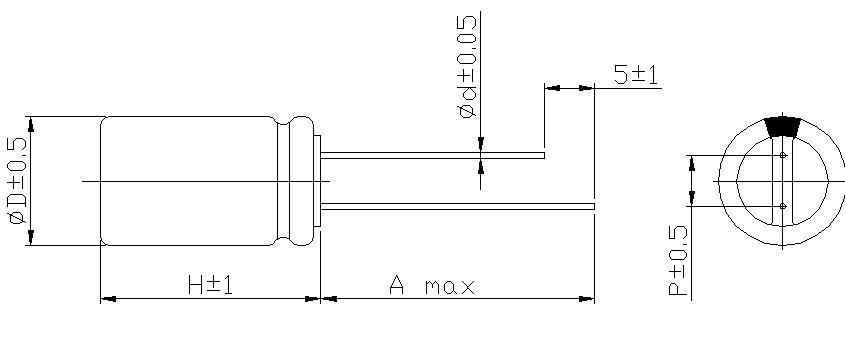

Product size (mm) |
|||
|
DC |
AC 1kHz |
Diameter |
Height |
Pitch |
||
|
HT-2R7-J354VYJ03 |
0.35 |
1700 |
850 |
5 |
12 |
2 |
|
HT-2R7-J504VYJ17 |
0.5 |
1100 |
550 |
6.3 |
12.5 |
2.5 |
|
HT-2R7-J704VYJ06 |
0.7 |
1100 |
550 |
8 |
13 |
3.5 |
|
HT-2R7-J704VYJ02 |
0.7 |
1000 |
500 |
5 |
24 |
2 |
|
HT-2R7-J105VYJ06 |
1 |
600 |
300 |
8 |
13 |
3.5 |
|
HT-2R7-J105TYJ16 |
1 |
1100 |
550 |
6.3 |
10 |
2.5 |
|
HT-2R7-J105VYJ17 |
1 |
1100 |
550 |
6.3 |
12.5 |
2.5 |
|
HT-2R7-J155UYJ18 |
1.5 |
700 |
350 |
6.3 |
14 |
2.5 |
|
HT-2R7-J155VYJ66 |
1.5 |
600 |
300 |
10 |
13 |
5 |
|
HT-2R7-J205VYJ07 |
2 |
480 |
240 |
8 |
20 |
3.5 |
|
HT-2R7-J205VYJ13 |
2 |
480 |
240 |
10 |
20 |
5 |
|
HT-2R7-J205VYJ42 |
2 |
480 |
240 |
6.3 |
22 |
2.5 |
|
HT-2R7-J335VYJ07 |
3.3 |
280 |
140 |
8 |
20 |
3.5 |
|
HT-2R7-J335VYJ13 |
3.3 |
280 |
140 |
10 |
20 |
5 |
|
HT-2R7-J405VYJ13 |
4 |
200 |
100 |
10 |
20 |
5 |
|
HT-2R7-J405VYJ07 |
4 |
200 |
100 |
8 |
20 |
3.5 |
|
HT-2R7-J475VYJ09 |
4.7 |
180 |
90 |
12.5 |
21 |
5 |
|
HT-2R7-J475VYJ13 |
4.7 |
180 |
90 |
10 |
20 |
5 |
|
HT-2R7-J505TYJ07 |
5 |
180 |
90 |
8 |
20 |
3.5 |
|
HT-2R7-J505VYJ13 |
5 |
180 |
90 |
10 |
20 |
5 |
|
HT-2R7-J505UYJ04 |
5 |
180 |
90 |
8 |
24 |
3.5 |
|
