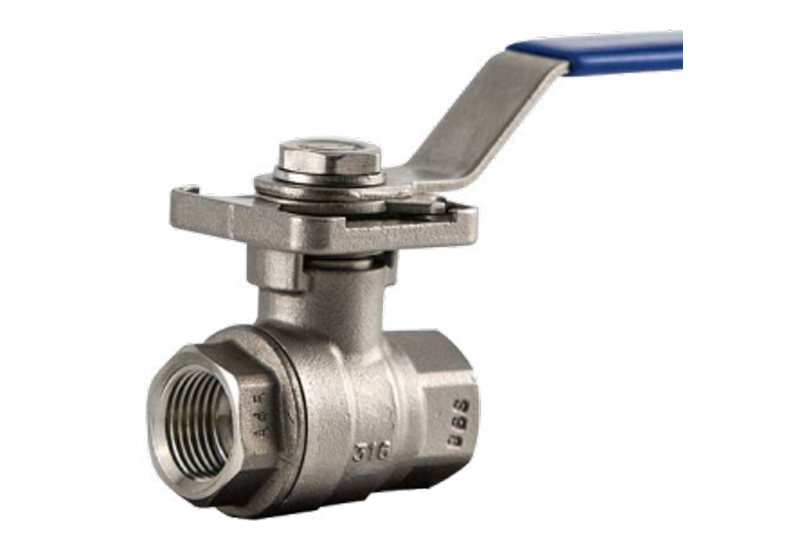

2 Piece High Platform Internal Threaded Ball Valve
Full.bore.ISO5211.
Threaded.ends: ANSI.B2.1.BS.
21,DIN259/2999.JIS.130202/130203
Internal.entry.blow-out.proof.stem
Material: .CF8M.CF8.CF3M.WCB
Pressure.rating: .1000PSI.WOG
Pressure.test: .API.598
Lever.handle.with.locking.device

Welcome to visit our homepage, we are Penglai Huande Steel Valve CO., LTD who are specialized in producing precision casting stainless steel ball valves. The valves can be forged and cast. Besides, we can also produce carbon steel ball valves for our customers. This is our two piece internal thread ball valve. The ball valve consists of a valve body and a valve cover, which is called two-piece type. One-piece type is an integral structure. The two-piece ball valve has improved one-piece valve with less flow and is easy to leak. The cover is increased to prevent leakage.
This is notice provided for you when you use the two piece internal large ball valve:
1. The installation position, height, and direction of the entrance and exit must meet the design requirements, and the threaded connection should be firm and tight.
2. All types of manual valves installed on the insulation pipe, the handle must not be down.
3. For valves with a working pressure greater than 1.0 MPa and a cut-off effect on the main pipeline, strength and sealing tests should be performed before installation, and they can be used after qualification.
4. Between the valve flange and the pipeline flange, seals are installed according to the piping design requirements.
5. The ball valve with transmission mechanism shall be installed in accordance with the instructions of the product manual.
The details of our two piece internal tread ball valve are as follows:
Size of 2 Piece High Platform Internal Threaded Ball Valve:
|
Size |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
11/4 |
11/4 |
2 |
2-1/2 |
3 |
4 |
|
Φd |
11 |
12.7 |
15 |
20 |
25 |
32 |
40 |
50 |
62 |
76 |
94 |
|
L |
49.5 |
49.5 |
55 |
70.5 |
82.5 |
90.8 |
103 |
120 |
152 |
172 |
220 |
|
LO |
110 |
110 |
110 |
136 |
136 |
158 |
203 |
203 |
324 |
324 |
324 |
|
H |
62 |
62 |
64 |
72 |
74 |
87 |
98 |
106 |
140 |
149 |
165 |
|
H1 |
9.5 |
9.5 |
9 |
11.2 |
11 |
15 |
15 |
15 |
19 |
19 |
19 |
|
H2 |
36 |
36 |
38 |
41.5 |
44.4 |
54 |
59.5 |
67 |
98 |
107.5 |
123.5 |
|
E |
9 |
9 |
9 |
11 |
11 |
14 |
14 |
14 |
17 |
17 |
17 |
|
B |
38 |
38 |
42 |
50 |
50 |
66 |
66 |
66 |
93 |
93 |
93 |
|
ISO |
F03 |
F03 |
F03 |
F04 |
F04 |
F05 |
F05 |
F05 |
F7 |
F7 |
F7 |
Specification of 2 Piece High Platform Internal Threaded Ball Valve:
|
No. |
Drawing.No. |
Name |
Material |
QTY |
|
1 |
V2M-000l |
Body |
CF8M |
1 |
|
2 |
V2M-0002 |
Cap |
CF8M |
1 |
|
3 |
V2M-0003 |
Ball |
CF8M |
1 |
|
4 |
V2M-0004 |
Stem |
316 |
1 |
|
5 |
V2M-0005 |
Seat |
PTFE+3%.GF |
2 |
|
6 |
V2M-0006 |
Gasket |
PTFE |
1 |
|
7 |
V2M-0007 |
Thrust.washer |
PTFE+15%.Graphite |
1 |
