20-200ml，full Pneumatic liquid and paste Filling Machine for butter,toothpaste,

Vertical full Pneumatic liquid and paste Filling Machine for butter,toothpaste

full Pneumatic Paste Filling Machine ( full pneumatic,explosion-proof model, doesn't need electric)

Features：

The series filling machine structure is reasonable, model compact, reliable, accurate, easy to operate, the dynamic part of the pneumatic structure, are used pneumatic components of Germany FESTO and Taiwan AIRTAC. Material contact parts are made of 316L stainless steel, in line with the requirements of GMP certification. Can be based on user needs filling volume and filling speed be adjusted in the model range, high filling accuracy. Filling head adopts anti-leakage and lifting filling device.

The aircraft main driving force for the gas source, customers must equip their own air compressor.

Application：

Vertical pneumatic liquid filling machine is a simliar version to the European advanced model, we have maken some improve basing on their advanced design, and make it more affordable to most of countries accross the word, and its structure is simple and precise accuracy, easy to operate, user-friendly design is more in line with the requirements of the modern enterprise. Widely used in the pharmaceutical, cosmetic, food, pesticides and special industries, the high viscosity fluid, paste the ideal device for quantitative filling.

Specification：

Machine Parameter:
Air pressure: 0.4-0.6MPa
Filling speed: 5-20bottles/min
Filling accuracy: ≤±1%

this machine's filling range : 20-200ml

Filling range: 5-100ml,20-200ml,30-300ml,50-500ml,100-1000ml,

The capacity of hopper is 35KG

Pneumatic Filling Machine Series ( doesn't need electric, Full Pneumatic)

Warranty: 1 year

Dimension: 54 X 45 X 130 (cm)

Weight: 55KGS

Note: The pneumatic instrument is not included, should be prepared by the buyer.

Guarantee& Shipment：

we supply 12months guarantee.

we would ship the machine in 4days.

we would ship it by DHL,FEDEX,UPS which takes only 4-6days for delivering.

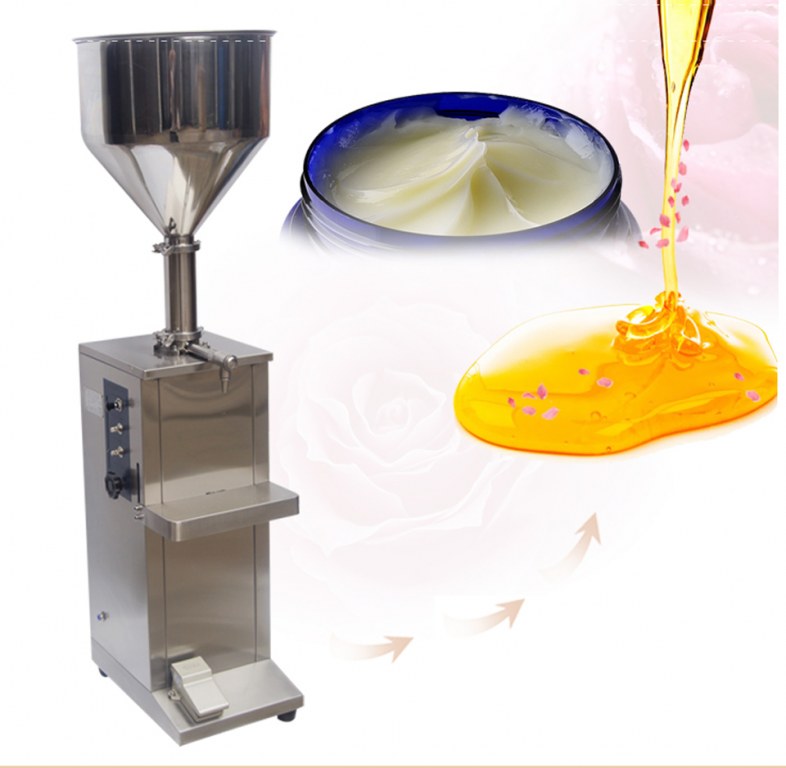

Product pictures：
