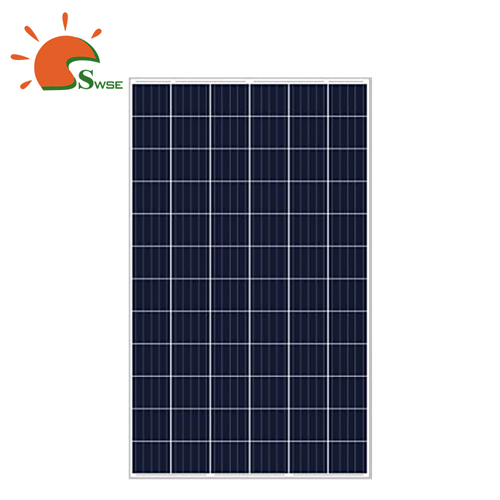

200W Polycrystalline Solar Panel
We are a well-known solar products company and we have 12 years of manufacturing experience for solar products, which include the solar module, solar energy system and solar lighting products, passing important tests in various industries like TUV, CE, CQC, FCC, RHOS, ETL, etc..
200W High Efficiency Polycrystalline Solar Panel
Wholesale manufacture 200W poly solar module, generally the solar panel is consist of 7 parts, they are from top to bottom junction box, back sheet, EVA film, solar cell, EVA film, glass, frame. The 200 watt polycrystalline solar panel is made up under a strict quality control system.
Advantages of 200W Polycrystalline Solar Panel
- 12 years of old-brand solar PV module manufacturer.
- Leading poly-crystalline silicon cells technology.
- High transmittance tempered glass.
Product Parameters of 200W Polycrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW200P-72 |
SW205P-72 |
SW210P-72 |
|
Max Power |
200W |
205W |
210W |
|
Max Voltage |
36.40V |
36.74V |
37.30V |
|
Max Current |
5.50A |
5.58A |
5.63A |
|
Open-circuit Voltage |
45.07V |
45.29V |
45.65V |
|
Short-circuit Current |
5.85A |
5.93A |
5.98A |
|
Module Efficiency |
15.19% |
15.57% |
15.95% |
|
Operating Temperature |
-40℃~+85℃ |
||
|
Max System Voltage |
1000Vdc |
||
|
Max Series Fuse Rating |
15A |
||
|
Power Tolerance |
±3% |
||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
157*157mm |
|
Cell amounts |
72(6*12) |
|
Module Dimensions |
992*1330*30mm |
|
Weight |
13.9kg |
|
Front Cover |
3.2mm tempered glass |
|
Frame Material |
Anodized aluminium alloy |
|
Junction Box |
IP65 rated |
|
Output Cables |
4mm2, Length 900mm+MC4 |
Packing
|
Packing |
20'GP |
40'HC |
|
Pieces/Carton |
35 |
35 |
|
Pieces/Container |
560 |
1248 |
