2016 new coffee drip bag packing machine
Quantité : 1 set/sets Prix : 8000-18000US$

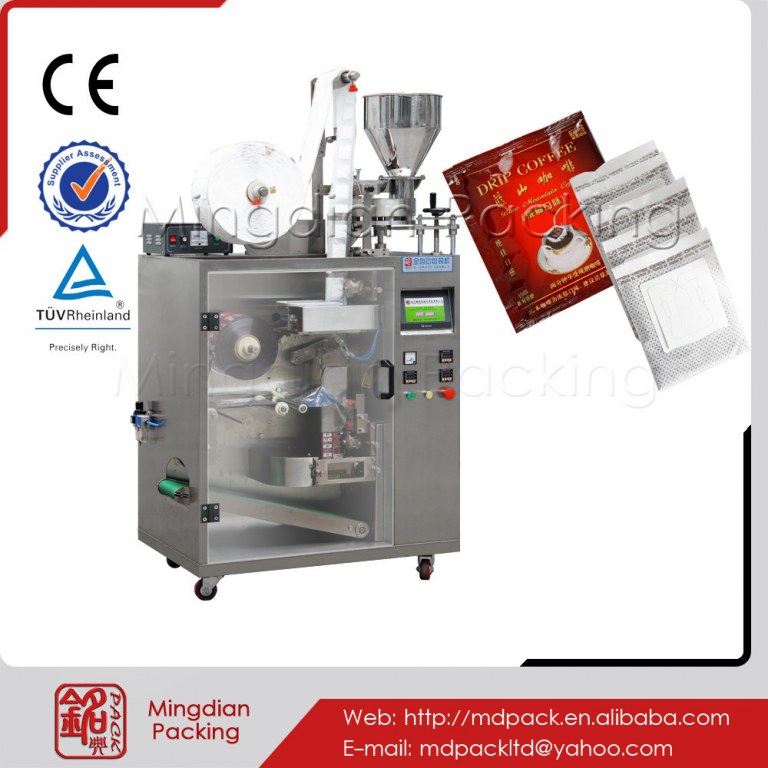

MD-181 2016 new coffee drip bag packing machine
Application:
1. This machine professionly applies to inner bag & outer envelop together packing for drip coffee, tea leaf , herbal tea, health tea, plants and other coarse granule packing.
2. Drip coffee also named as lug coffee, earhook coffee, brewed coffee, follicular type coffee,etc.
Features:
Ultrasonic sealing & Driven by electric and pnuematic &Highly resistant to abrasion.
Technical Advantage:
1 .Outer envelop forming was controlled by step motor to ensure envelope size .
2. Accurate temperature is controlled by PID .
3.The whole working cycle logic and quality control are achieved by a Siemens PLC.
4. Machine parts that coffee will touch is made of SUS304 stainless steel , guaranteeing food safety and health.
5. Some air cylinder parts are imported from developed country, bringing more stable and precision function.
6. Additional device of this machine can do flat side cutting ,date printing and making easy-open mouth of bag.
7. Ultrasonic sealing and heatsealing can allow straight line cutting and save room for inner bag to reach 12g bag volume.
8.Nitrogen filling device , date printer and stirring device can be installed to this machine if need.
Technical Data:
|
Model |
MD-180 |
|
Sealing Method |
By Ultrasonic (Filter bag)By Heating(Envelope) |
|
Sealing Type of Inner Bag |
3 Side Sealing |
|
Sealing Type of Envelope |
3 Side Sealing |
|
Measuring |
5-12g/bag (at customer's option) |
|
Packing Speed |
30-50 bag/min |
|
Size of Inner Bag |
50-75(W)X50-75(L) (As customer's option) |
|
Size of Envelope |
75-95(W)X85-120(L) (As customer's option) |
|
Input Voltage |
220V/50HZ |
|
Total Power |
3.7KW |
|
Diamension |
1050*700*1300mm |
|
Weight |
650KG |
|
Machine Material |
Stainless Steel |
|
Application |
For lug coffee, tea, herbal tea, health tea, plants and other small particles in the inner and outer bags . |
Our Machine Production Process

Sample Display
<img data-alt="MD-181 handly coffee maker package machine" data-height="256" data-width="337" height="256" ori-height="750" ori-width="560" src="http://g02.s.alicdn.com/kf/HTB1cJUKIFXXXXXKXXXXq6xXFXXXd/221055094/HTB1cJUKIFXXXXXKXXXXq6xXFXXXd.jpg" style="margin: 0px; padding: 0px; border: 0px; font-family: inherit; font-size:0px; font-sty
