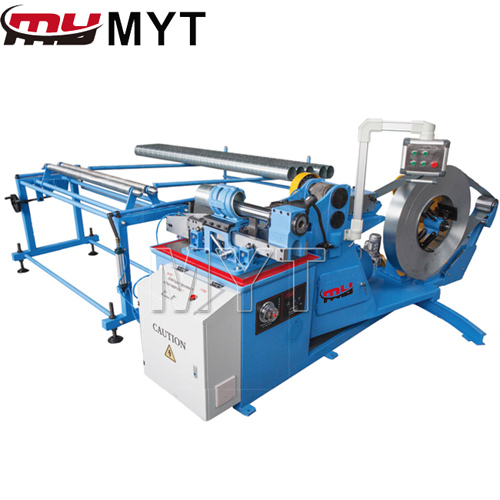

2020mm Spiral Duct Forming Machine
Quantité : 500 sets/ Prix : 3000-10000 usd
2020 spiral duct making machine is driven by a sprocket, and the uncoiler and the main machine are integrated. The discharge rack has an automatic turning function, and the infrared sensor switch controls the cutting length.
2020mm Spiral Duct Forming Machine Features
Slitter /plasma cutting of the tubes to the preset length and required number of pieces.
2. The cut to length is made by the patented slitter (no noise, no hot sparks created by the saw blade, no leaning of the cut edge). Modern industrial proof computer control.
3. The electric drive ensures that even by using 2.0 mm strip coil the 2020 continually produces perfect, tight spiral tubes matching or surpassing the standards of DIN, BS, Euronorm and Smacna
4. The perfect adapted options for making reinforcement beads, for the production of tendon sheet tubes or the automatic production of notches for the METU flanges, during the production process are further advantages of the tube former 2020.
5. 2020 is the only machine for the fastidious customer.
2020mm Spiral Duct Forming Machine Main Technical Parameters
Diameter range |
80 -2500mm Spiral tube former/spiral duct machine |
Thickness of strip Spiral tube former/spiral duct machine / spiral forming machine |
galvanised steel 0.4 -2.0mm stainless steel 0.4-1.2mm aluminium 0.4-2.0mm |
Width of strip Spiral tube former/spiral duct machine / spiral forming machine |
Standard 137mm 0.4-1.0 mm Standard 140mm 1.1-1.3 mm Standard 150mm 1.4-2.0 mm |
Cutting system |
Plasma Cut flying slitter Spiral tube former/spiral duct machine |
Motor power |
22Kw |
Weight |
3200kg Spiral tube former / spiral duct machine |
Dimension |
2100 mm×1800 mm×1500mm |
MYT company has over 15 years of manufacturing and exporting experience in HVAC auto duct line,any needs in this aspect,please contact us!
Personne à contacter : Zhao Melody , 8615951670606
