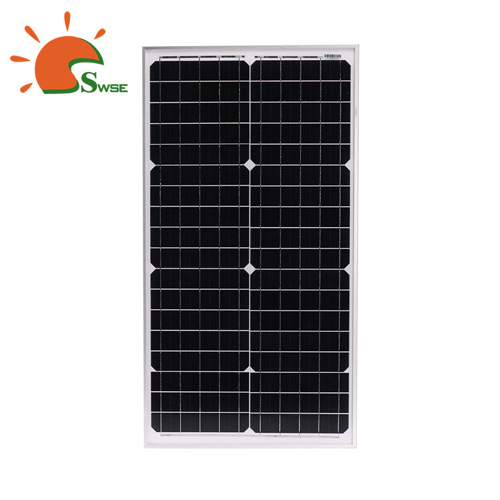

20W Monocrystalline Solar Panel
We are a well-known solar products company and we have 12 years of manufacturing experience for solar products, which include the solar module, solar energy system and solar lighting products, passing important tests in various industries like TUV, CE, CQC, FCC, RHOS, ETL, etc..
20W High Efficiency Monocrystalline Solar Panel For Home
This 20W high efficiency monocrystalline solar panel for home mainly used lighting of family and some small appliance, like a fan, mobile phone, Illuminating lamp and so on and this series of 20 watt monocrystalline solar panel has already won good comment from customers.
Advantages of 20W Monocrystalline Solar Panel
- Positive tolerance to ensure higher output.
- Excellent performance under weak light condition.
- Modules withstand extremely (temperature, load and impact) TUV certification.
- All modules combination and packing through the stepping current to keep effectively reduce mismatch loss
- 100% EL test to keep the higher quality.
Product Parameters of 20W Monocrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW010M-36 |
SW020M-36 |
SW030M-36 |
SW040M-36 |
|
Max Power |
10W |
20W |
30W |
40W |
|
Max Voltage |
18.41V |
18.51V |
18.60V |
18.44V |
|
Max Current |
0.54A |
1.08A |
1.61A |
2.17A |
|
Open-circuit Voltage |
22.78V |
23.31V |
23.81V |
23.15V |
|
Short-circuit Current |
0.57A |
1.12A |
1.64A |
2.33A |
|
Module Efficiency |
11.31% |
13.84% |
13.79% |
14.78% |
|
Operating Temperature |
-40℃~+85℃ |
|||
|
Max System Voltage |
300Vdc |
|||
|
Max Series Fuse Rating |
3A |
5A |
5A |
10A |
|
Power Tolerance |
±3% |
|||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
|||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
156.75*156.75mm |
156.75*156.75mm |
156.75*156.75mm |
156.75*156.75mm |
|
Cell amounts |
36(2*18) |
36(2*18) |
36(2*18) |
36(4*9) |
|
Module Dimensions |
340*260*17mm |
340*425*20mm |
340*640*20mm |
660*410*25mm |
|
Weight |
0.6kg |
1.2kg |
1.8kg |
3.6kg |
|
Front Cover |
3.2mm tempered glass |
|||
|
Frame Material |
Anodized aluminium alloy |
|||
|
Junction Box |
IP65 rated |
|||
Packing
|
Power |
10W |
20W |
30W |
40W |
||||
|
Packing |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
|
Pieces/Carton |
15 |
15 |
10 |
10 |
10 |
10 |
8 |
8 |
|
Pieces/Container |
11340 |
25920 |
5280 |
12480 |
3520 |
8160 |
2304 |
5632 |
