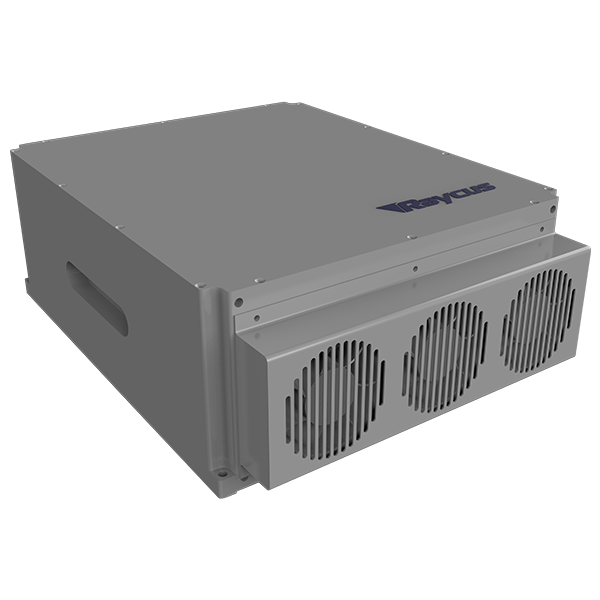

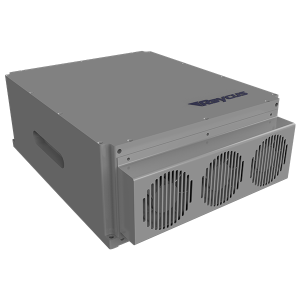

20W Q-Switched Pulse Fiber Laser

RFL-P20QE

The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser.

Customer service hotline: 027-81338818 to 8137

Online consultation +

Product specification

Characteristics of laser fiber 20w

Technical characteristics

Highly stable laser outputHigh single-pulse energyHigh marking efficiencyShort pulse setup timeHigh reliabilityMaintenance-free operation

Optical Properties

Average output power: (W): 20Central wavelength: (nm): 1064Repetition frequency: (kHz): 30-60Output power instability: <3%</span>

Output characteristics

Output Beam Diameter(mm): 7±1M²: <1.5Polarization state: randomPulse Width Range(ns): 120-150Max.Single Pulse Energy(mJ): 0.66Delivery Cable length (m): 3(Customizable)</span>

Electronic control characteristics

Input power (V DC ): 24Power adjustment range (%): 10-100

Other characteristics

Dimensions (mm ): 260*120*391(handle included)Cooling method: Air-cooledWorking temperature (℃ ): 0-40

Application Of 20W Q-Switched Pulse Fiber Laser RFL-P20QE

Rust RemovalOil CleaningMold Surface TreatmentPaint StrippingWelding Surface Pre-treatmentPortrait Stone Surface Treatment

Now the price of 20w raycus fiber laser source is affordable, if you have needs, please contact us.

As a mopa laser factory, we will do our best to provide more high quality products for sale, if you are interested, please contact us.
