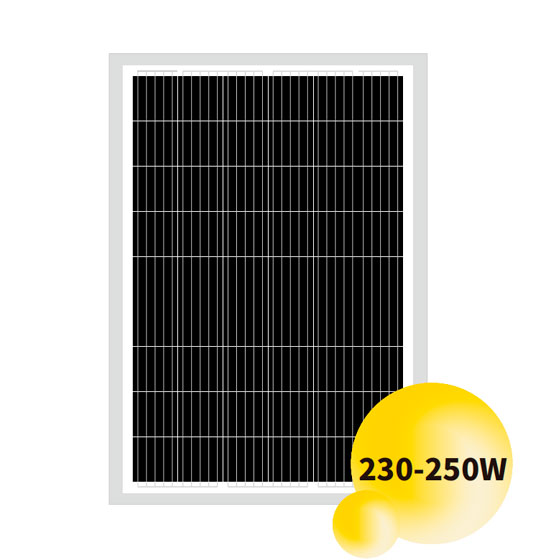

230W-250W Poly Solar Panel With 54 Pieces Solar Cells
The 230w, 240w, and 250w polycrystalline solar panels are composed of 54 pieces of polycrystalline silicon, which are often used in photovoltaic water pumps to solve the problem of drinking and irrigating deep water wells in areas without electricity. Most are more common in places such as Africa.
Parameter Of 230W-250W Poly Solar Panel With 54 Pieces Solar Cells
Electrical Characteristics Of 230W Poly Solar Panel With 54 Pieces Solar Cells
|
Module Type |
SLB54P6-230 |
|
Maximum Power (W) |
230 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
27.2 |
|
Optimum Operating Current (IMP) |
8.46 |
|
Open Circuit Voltage (VOC) |
31.63 |
|
Short Circuit Current (ISC) |
9.3 |
|
Module Efficiency (%) |
13.53 |
Electrical Characteristics Of 240W Poly Solar Panel With 54 Pieces Solar Cells
|
Module Type |
SLB54P6-240 |
|
Maximum Power (W) |
240 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
27.36 |
|
Optimum Operating Current (IMP) |
8.77 |
|
Open Circuit Voltage (VOC) |
32.96 |
|
Short Circuit Current (ISC) |
9.64 |
|
Module Efficiency (%) |
16.28 |
Electrical Characteristics Of 250W Poly Solar Panel With 54 Pieces Solar Cells
|
Module Type |
SLB54P6-250 |
|
Maximum Power (W) |
250 |
|
Tolerance Wattage (W) |
0~+5 |
|
Optimum Power Voltage (VMP) |
27.61 |
|
Optimum Operating Current (IMP) |
9.06 |
|
Open Circuit Voltage (VOC) |
31.11 |
|
Short Circuit Current (ISC) |
9.96 |
|
Module Efficiency (%) |
16.7 |
As a professional solar products llc, we provide solar products in china, china 265w poly solar panel, 280 watt solar panel for sale, 270w poly solar panel, 265w poly solar panel, 260w poly solar panel, solar lighting system and etc. Want to know solar panel 280w price or more, contact us.
