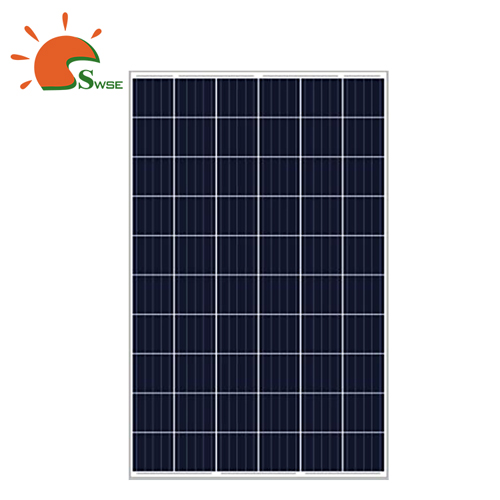

250W High Efficiency Polycrystalline Solar Panel

Prix : 1000-6000USD

Dongguan Sunworth Solar Energy Co. Ltd, founded in 2008, is a high technology solar products company specialized in the R&D, manufacturing, and sales of solar modules, solar energy systems, and solar street lights, etc. Sunworth has passed ISO9001: 2008 and its products got the international authoritative certifications such as TuV, IEC, CE, ETL, and golden sun, etc. We also provide polycrystalline panel, solar kits, silicon module, mono cell solar panel and so on.

250W-270W poly solar module, service life is 25 years. Few maintenances needed during usage. This series of 250 watt polycrystalline solar panel can generate power and meanwhile be the roof of the shed, be a decoration of buildings, etc. The 250w polycrystalline solar panel price is not high.

Advantages of 250W Polycrystalline Solar Panel

Experienced and quality reliable photovoltaic module manufacturer.

High transmittance tempered glass.

10 years product warranty, 25 years linear power warranty.

Competitive price of the 250w polycrystalline solar panel.

Product Parameters of 250W Polycrystalline Solar Panel

Electrical Parameters

Model No.

SW250P-60

SW260P-60

SW270P-60

Max Power

250W

260W

270W

Max Voltage

30.87V

31.18V

31.51V

Max Current

8.10A

8.34A

8.57A

Open-circuit Voltage

37.20V

37.88V

38.56V

Short-circuit Current

8.76A

8.94A

9.11A

Module Efficiency

15.37%

15.98%

16.60%

Operating Temperature

-40℃~+85℃

Max System Voltage

1000Vdc

Max Series Fuse Rating

15A

Power Tolerance

0~+3%

*STC condition: 1000 W/m²

1.5AM and 25℃ cell temperature

Temperature parameters

NMOT

46℃±2℃

Temperature Co-efficient of Pmax

-0.398%/℃

Temperature Co-efficient of Voc

-0.340%/℃

Temperature Co-efficient of Isc

0.0576%/℃

Mechanical Parameters

Cell size

157*157mm

Cell amounts

60(6*10)

Module Dimensions

992*1640*35mm

Weight

17.6kg

Front Cover

3.2mm tempered glass

Frame Material

Anodized aluminium alloy

Junction Box

IP67 rated

Output Cables

4mm2, Length 900mm+MC4

Packing

Packing

20'GP

40'HC

Pieces/Carton

30

30

Pieces/Container

360

896

Localisation : NO 1(A), NO 1 Industrial Zone, Liuyongwei Villiage, Wanjiang Town, Dongguan, Guandong Province, China, 523000 NO 1(A), NO 1 Industrial Zone, Liuyongwei Villiage, Wanjiang Town, Dongguan, Guandong Province, China,
Personne à contacter : Wang Bella, 0769 23320882
