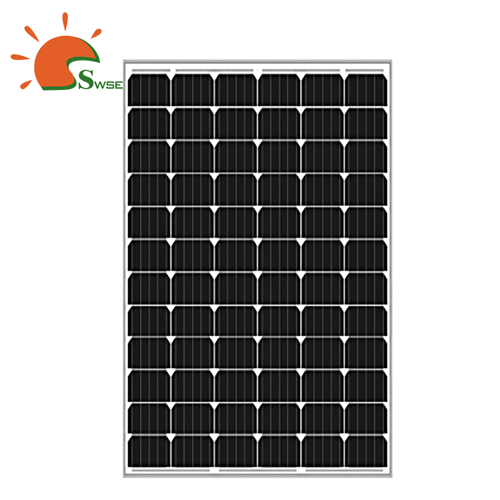

250W Monocrystalline Solar Panel
We are a well-known solar products company and we have 12 years of manufacturing experience for solar products, which include the solar module, solar energy system and solar lighting products, passing important tests in various industries like TUV, CE, CQC, FCC, RHOS, ETL, etc..
250W High Efficiency Monocrystalline Solar Pane
200W~250W renewable energy mono solar power PV panel is usually used in a variety of customized energy storage systems and PV power plants. Improving the local power environment while avoiding insufficient power during peak periods. The highly competitive mono solar panel 250 watt price in Sunworth in this field.
Advantages of 250 Watt Monocrystalline Solar Panel
- 12 years of solar PV products manufacture experience.
- Fully automated production line for PV module.
- Stable and reliable delivery time of the 250 watt mono solar panell.
- Passed a variety of harsh environmental tests, like salt spray, ammonia and sand storm corrosion tests.
- 80% power output warranty for 25 years.
Product Parameters of 250W Monocrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW200M-72 |
SW230M-72 |
SW250M-72 |
|
Max Power |
200W |
230W |
250W |
|
Max Voltage |
36.36V |
37.85V |
39.39V |
|
Max Current |
5.51A |
6.08A |
6.35A |
|
Open-circuit Voltage |
44.84V |
45.87V |
47.91V |
|
Short-circuit Current |
5.73A |
6.38A |
6.66A |
|
Module Efficiency |
15.16% |
17.43% |
18.95% |
|
Operating Temperature |
-40℃~+85℃ |
||
|
Max System Voltage |
1000Vdc |
||
|
Max Series Fuse Rating |
15A |
||
|
Power Tolerance |
±3% |
||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
156.75*156.75mm |
156.75*156.75mm |
156.75*156.75mm |
|
Cell amounts |
72(6*12) |
72(6*12) |
72(6*12) |
|
Module Dimension |
992*1330*30mm |
992*1330*30mm |
992*1330*30mm |
|
Weight |
13.9kg |
13.9kg |
13.9kg |
|
Front Cover |
3.2mm tempered glass |
||
|
Frame Material |
Anodized aluminium alloy |
||
|
Junction Box |
IP65 rated |
||
|
Output Cables |
4mm2, Length 900mm+MC4 |
||
Packing
|
Power |
200W |
230W |
250W |
|||
|
Packing |
20'GP |
40'HC |
20'GP |
40'HC |
20'GP |
40'HC |
|
Pieces/Carton |
35 |
35 |
35 |
35 |
35 |
35 |
|
Pieces/Container |
560 |
1248 |
560 |
1248 |
560 |
1248 |
