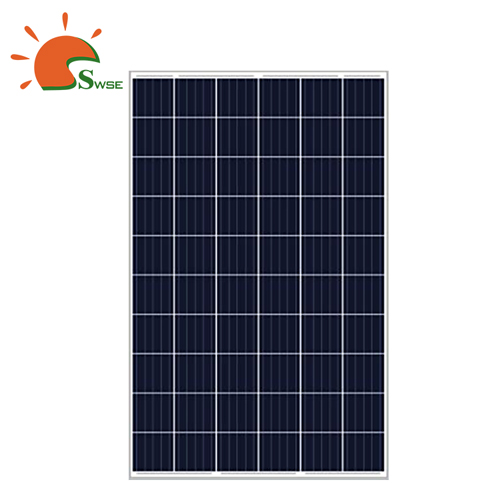

250W Polycrystalline Solar Panel
We are a well-known solar products company and we have 12 years of manufacturing experience for solar products, which include the solar module, solar energy system and solar lighting products, passing important tests in various industries like TUV, CE, CQC, FCC, RHOS, ETL, etc..
250W High Efficiency Polycrystalline Solar Panel
250W-270W poly solar module, service life is 25 years. Few maintenances needed during usage. This series of 250 watt polycrystalline solar panel can generate power and meanwhile be the roof of the shed, be a decoration of buildings, etc.
Advantages of 250W Polycrystalline Solar Panel
- Experienced and quality reliable photovoltaic module manufacturer.
- High transmittance tempered glass.
- 10 years product warranty, 25 years linear power warranty.
- Competitive 250w polycrystalline solar panel price.
Product Parameters of 250W Polycrystalline Solar Panel
Electrical Parameters
|
Model No. |
SW250P-60 |
SW260P-60 |
SW270P-60 |
|
Max Power |
250W |
260W |
270W |
|
Max Voltage |
30.87V |
31.18V |
31.51V |
|
Max Current |
8.10A |
8.34A |
8.57A |
|
Open-circuit Voltage |
37.20V |
37.88V |
38.56V |
|
Short-circuit Current |
8.76A |
8.94A |
9.11A |
|
Module Efficiency |
15.37% |
15.98% |
16.60% |
|
Operating Temperature |
-40℃~+85℃ |
||
|
Max System Voltage |
1000Vdc |
||
|
Max Series Fuse Rating |
15A |
||
|
Power Tolerance |
0~+3% |
||
|
*STC condition: 1000 W/m² |
1.5AM and 25℃ cell temperature |
||
Temperature parameters
|
NMOT |
46℃±2℃ |
|
Temperature Co-efficient of Pmax |
-0.398%/℃ |
|
Temperature Co-efficient of Voc |
-0.340%/℃ |
|
Temperature Co-efficient of Isc |
0.0576%/℃ |
Mechanical Parameters
|
Cell size |
157*157mm |
|
Cell amounts |
60(6*10) |
|
Module Dimensions |
992*1640*35mm |
|
Weight |
17.6kg |
|
Front Cover |
3.2mm tempered glass |
|
Frame Material |
Anodized aluminium alloy |
|
Junction Box |
IP67 rated |
|
Output Cables |
4mm2, Length 900mm+MC4 |
Packing
|
Packing |
20'GP |
40'HC |
|
Pieces/Carton |
30 |
30 |
|
Pieces/Container |
360 |
896 |
