29 inch Outdoor Camera Housing Enclosure
Quantité : 1-1000 Prix : 20~50,000 US$

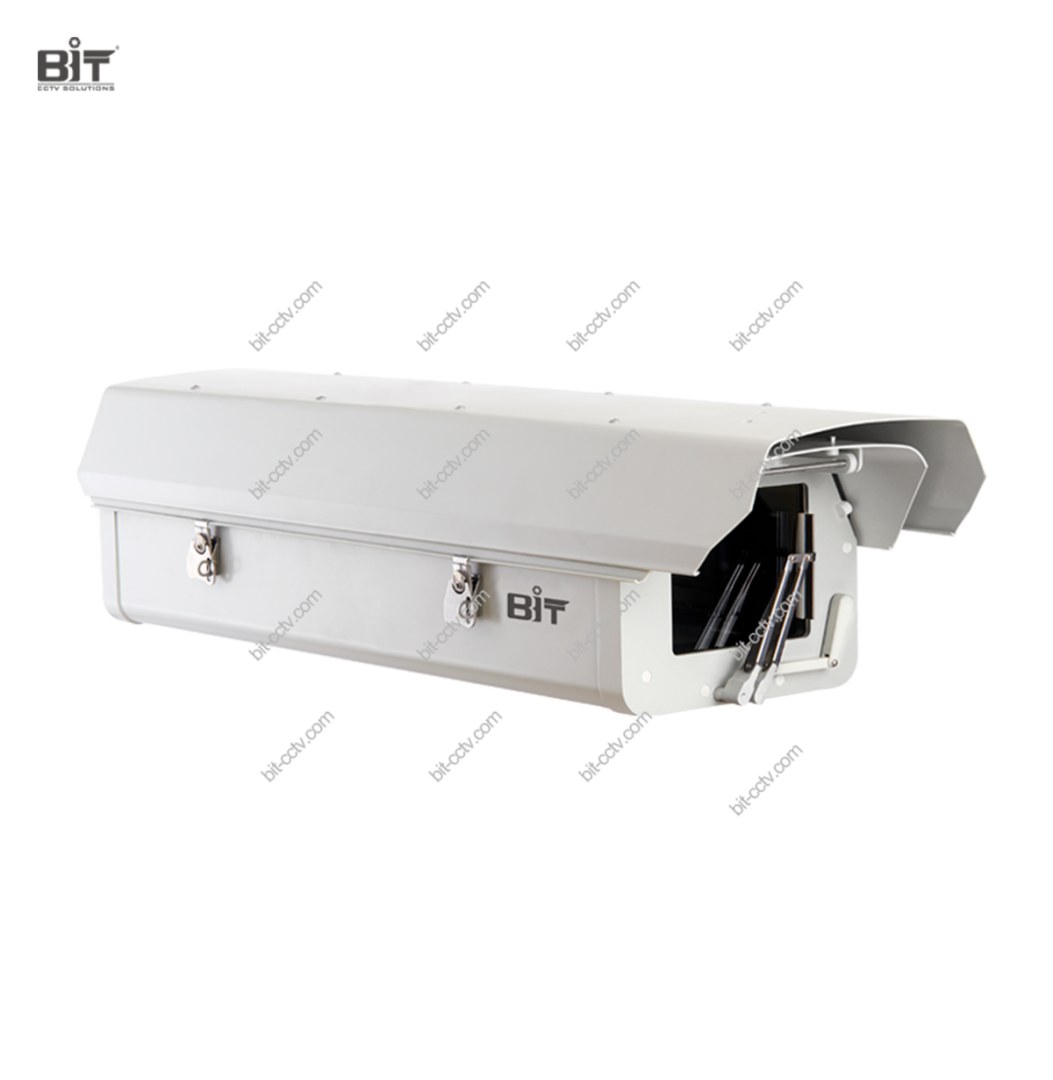

Features of BIT-HS4829 29" Outdoor Large CCTV Camera Housing with Wiper & Enclosure
23 or 29 inch, outdoor application
Work alone or with pan tilt
Aluminum alloy material
Top open design, easy camera installation
Optional sunshield, heater, fan, wiper
IP66 ingress protection
BIT-HS4823 & BIT-HS4829 are large size enclosure housing suitable for network camera housing and long focal-length lens for outdoor application especially to work with medium/heavy duty pan tilt head BIT-PT520/850 as part of the PTZ camera system. With the support of optional heater, blower fan, and wiper, they are very good choice for long range video surveillance.
Technical Specifications
|
Model |
BIT-HS4823 |
BIT-HS4829 |
||
|
Housing |
|
|||
|
Application |
Outdoor/Indoor |
|||
|
Dimensions |
740x235x190 mm |
893x 235x190 mm |
||
|
(L)x(W)x(H) |
29.13x9.25x7.48 in |
35.16x9.25x7.48 in |
||
|
Internal Space |
400x140x125 mm |
550x140x125 mm |
||
|
(L)x(W)x(H) |
15.74x5.51x4.92 in |
21.65x5.51x4.92 in |
||
|
Window |
134x108 mm |
134x108 mm |
||
|
(W)x(H) |
5.28x4.25 in |
5.28x4.25 in |
||
|
General |
||||
|
Power Supply |
AC 24V ± 10% |
|||
|
Power Consumption |
Heating: 36W( 24V); Fan: 8W(24V);Wiper: 5W(220V) |
|||
|
Working Temperature |
-35ºC ~ 60ºC (-31 ºF ~ 140 ºF ) |
|||
|
Auto Temperature Control |
Heating on: 8ºC(46.4ºF ) ±5, off 20ºC(68ºF ) ±5 |
|||
|
Fan on: 37º(98.6ºF )C ±5, off 20ºC(68ºF ) ±5 |
||||
|
Working Humidity |
≤90% RH (No condensing, no heating) |
|||
|
Protection Level |
IP66 |
|||
|
Material |
Alloy aluminum |
|||
|
Weight |
6.5kg (14.33 lb) |
7.0kg (15.43 lb) |
||
|
Order Information |
Options |
|||
|
Model |
Housing Only |
Sunshiled |
Heater/Fan |
Wiper |
|
BIT-HS4823/4829 |
X |
/ |
/ |
/ |
|
BIT-HS4823K/4829K |
X |
X |
/ |
/ |
|
BIT-HS4823SHK/4829SHK |
X |
X |
X |
/ |
|
BIT-HS4823SHKW/4829SHKW |
X |
X |
X |
X |
|
Related Products |
|
|
|
|
|
Pan Tilt Head |
BIT-PT520, BIT-PT850 |
|||
As a surveillance camera factory, we have types of surveillance camera china for sale, if you have needs, please contact us.
