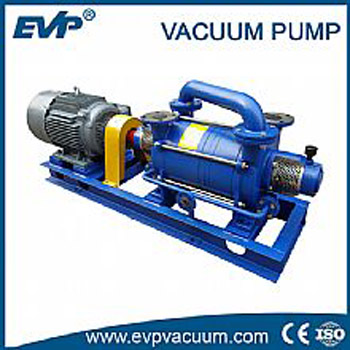

2SK liquid ring vacuum pump
2SK series liquid ring vacuum pumps(double stage liquid ring vacuum pump) are used for exhausting and compressing air and other noncorrosive, water insoluble and solid particle-free gases so as to create vacuum and pressure in closed containers. A little liquid is allowed in the gas.
2SK series liquid ring vacuum pumps have included secondary impellers and pump cavities to increase vacuum by serial connection. The pumps have high exhaustion capacity under high vacuum degree. The 2SK water ring pumps can also be connected with air ejector, the limiting vacuum combined with air ejector can be up to -740mmhg, ( -0.098Mpa), and the absolute pressure is about 2660pa. Furthermore, the 2SK water ring vacuum pump can be combined with Roots vacuum pumps as well to combine liquid ring-roots vacuum unit with a wider application range due to the high ultimate vacuum of 0.5Pa.
Main features:
Compact structure and convenient maintenance;
Wide application range, which applicable for gas with vapor or flammable, explosive, containing a little dust and a little liquid gas.
Low maintenance expense since water is the main operating medium;
Applicable in severe environments.
Model |
Ultimate Pressure |
Pumping Speed |
Rotary Speed |
Cooling Water Consumption |
Inlet Diam |
Outlet Diam |
Motor Power |
Weight
|
Replace model |
|
hpa |
torr |
M3/min |
r/min |
L/min |
mm |
mm |
kw |
(Kg) |
||
2SK-3 |
33 |
25 |
3 |
1450 |
30 |
40 |
40 |
7.5 |
320 |
2BV5 111 |
2SK-6 |
33 |
25 |
6 |
1450 |
35 |
65 |
65 |
11 |
370 |
2BV5 131 |
2SK-12 |
33 |
25 |
12 |
980 |
70 |
100 |
100 |
22 |
850 |
2BE 202 |
2SK-20 |
33 |
25 |
20 |
980 |
80 |
125 |
125 |
37 |
900 |
2BE252-660 |
2SK-30 |
33 |
25 |
30 |
980 |
90 |
125 |
125 |
55 |
1300 |
2BE253-660 |
