3.2 Inch 240x320 MPU 8/16bit Interface LCD Display

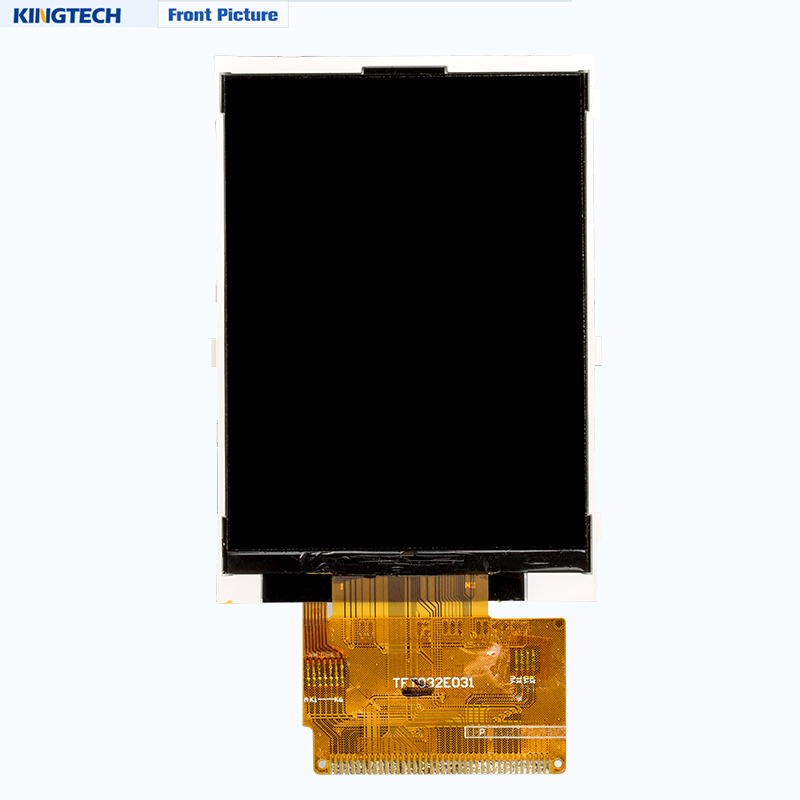

Kingtech 3.2inch 240x320 (QVGA) TN TFT LCD display is our most leading product.
The 3.2inch 6 O'clock TN display has existing resistive touch, we can custom capacitive touch according to customer requirements. The 3.2 inch tft lcd module can support the MCU interface.
Moreover, most of the customers used it for medical devices, handheld equipment, and POS machine. As a display module manufacturer, we are able to update types of standard LCD dispaly and offer perfect quality of products.
Features of 3.2 Inch 240x320 MPU 8/16bit Interface Round LCD Display
240x320 /QVGA resolutions
Support MCU 8bit and 16bit interfaces
Small / Tiny display
Support resistive touch
Can custom TFT capacitive touchscreen
Specification of 3.2 Inch 240x320 MPU 8/16bit Interface LCD Display
|
Item |
3.2inch TFT module display |
|
Model No |
PV03200DX39B |
|
Resolution |
240*320 |
|
Outline Dimension |
77.6(L)*55.04(W)*2.5(T) |
|
Active Area(mm) |
64.8 (L)*48.6(W) |
|
Interface |
MCU 8/16BIT |
|
Viewing Angle |
6 O'clock |
|
Driving IC |
ILI9341V |
|
Display Mode |
Transmissive / Normally White |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
|
Brightness |
230nits |
|
Touchscreen |
Touchscreen available |
Application of 3.2 Inch 240x320 MPU 8/16bit Interface LCD Display
The 3.2 tft lcd display can be used for medical devices, industrial control, handheld equipment, POS machine, smart home, and E-Bike.
