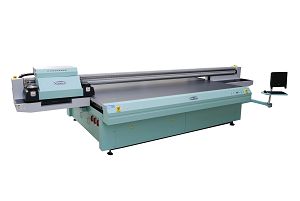

3.21.8m Uv Flatbed Printer

3.2*1.8m large format Ricoh 7pl head LED UV Flatbed PrinterModel: TC-F3218Print Size: 3.2*1.2m; Print head: Ricoh G5 --7plHead Qty: max. 16 pcsColor option: CMYK LcLm White VarnishPrint Resolution: 600 900 1200 1800 2400 dpiInk: UV Ink (no voc)Curing System: LED/mercury(optional)Max Printing Size: 3200*1800mmMax Media Height: 120mmPower: 7KWVoltage: 220V/240V, single phaseFrequency: 50/60HzIntroductionTC-F3218 is a new model with printing size of 3.2m*1.8m. It is designed to adapt customer's printing needs on media sized within 3.2*1.8m and faster printing. This large format UV printer is showed first time with configuration of 8 pcs of Ricoh Gen5 heads to print CMYK colors on the shanghai ad & sign expo. It shows an excellent printing speed which can reach up to 60 sqm/hour. This model has a 3.2m roll option can be added to it. You can find Model TC-FR3218 in our product catalog. This UV Flatbed Printer is equipped with LED Curing System which is suitable for both panel boards printing and soft roll media.Parameter DataModelTurecolor TC-F3218ColorC M Y K, Lc Lm White and Varnish are optionalPrintheadPiezoelectric Printhead RICOH GEN 5 7PL / Konica Head (Option)Top Resolution600,900,1200,1800,2400dpiSpeedUp to 60 ㎡/h double CMYKMediaWood board, Aluminum sheet, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.Media SizeMaximum Printing Area： Flatbed: 3.2m（width）x 1.8m（depth）;Thickness of MaterialPanel：≤ 120mmWeight of MaterialPanel：≤ 45 kg/m2Image formatTiff, jpg, Postscript3,EPS,PDF,AI and so onInkEnvironment friendly UV inkInk Capacity2.5L drums, automatic ink control, non-stop and inkPower SupplyAC,50HZ/60HZ , 220v（±10%）Printing softwarePhotoprint Dx12 plus/ Caldera（Option）OptionalAir CompressorDimensions (W x D x H)Net & GrossPackage dimensions (W x D x H)Minimum Work Area (Width x Depth x Height)Operation environmentTemperature: 15-30℃(59-86℉) Humidity: 40-80% RH (non-condensing) Operating Noise ≤80dBSafety CertificationCE CertificationInstallation & Training & After-sale Service English speaking engineers can fly abroad for installation and training24/7 can be touchable on whatsapp, wechat, email and team viewer.Warranty One year warranty for whole machine Except consuming spares such as printhead, ink supply system and mercury lamp.Moving SystemX axis: Double THK Linear RailY axis: Double Lead Screw Motor Y axis: Dual Fuji Servo Motors Motor X axis: Fuji Servo Motor Driver: Fuji Servo DriversMachine DetailsProfessional Color Management;Anti Crush System;Anti Statics System;Media Quick Positioning Pin;Auto Media Height Detecting System;Auto Carriage Up and Down Moving System;Auto White Ink recycling System;Ink Pre-Heating System; url: http://www.sprinter-uv-flatbed-printer.com
