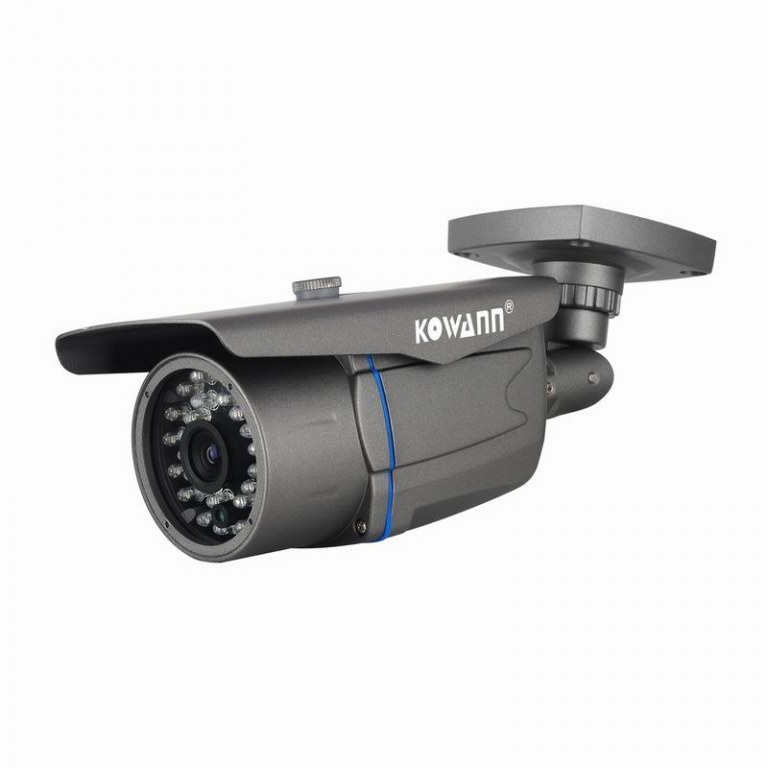

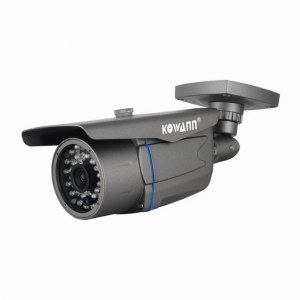

3.6 Mm Board Lens IR CCTV Camera (KW-3180F)
Fixed Lens Weatherproof IR Cameras with 30 pcs*5mm IR LED
Feature: IR Range: 20M 3-Axis Bracket
Hidden cable design
30 pcs*5mm IR LED
Camera Solution: HDIS238+8050
Resolution: Color 1/3" HDIS 800TVL
Built-in 3.6 mm Board Lens
(6mm is optional)
Dual glasses, no fog, no IR disturb
OSD menu optional
Weight: 0.7Kg
Water resistance: IP66
|
Model |
KW-3180F |
KW-315F |
KW-3165F |
KW-3170F |
KW-W3196F |
|
Sensor + DSP |
HDIS238 |
SHARP RJ2341 |
SONY ICX811AK |
SONY ICX673AK |
SONY ICX663AK |
|
Pixel |
PAL: 976(H)*504(v) |
PAL: 976(H)*582(v) |
PAL: 976(H)*582(v) |
PAL: 976(H)*582(v) |
PAL: 976(H)*582(v) |
|
TV Lines |
800TVL |
700TVL |
7OOTVL |
720TVL |
720TVL |
|
Signal System |
PAL/NTSC |
||||
|
Lens Optional |
3.6mm,6mm Lens optional |
||||
|
Minimum |
0 Lux (Infrared on) |
||||
|
S/N |
>52dB |
||||
|
Shutter speed |
1/50(1/60)_1/100,000(Sec.) |
||||
|
Gamma Correction |
> 0.45 |
||||
|
Synchronous mode |
internal synchronization |
||||
|
White Balance |
Auto white balance |
||||
|
Video Output |
1Vp-p,75ohm,BNC |
||||
|
Power |
DC12V,1000mA |
||||
|
Infrared |
850nm |
||||
|
Infrared |
20M |
||||
|
Infrared Led |
30 pcs*5mm IR LED |
||||
|
weight |
0.7Kg |
||||
|
Temperature |
(-20°C ~ +50) |
||||
|
Water resistance |
IP66 |
||||
|
Model |
KW-3112F |
KW-313F |
KW-319F |
KW-312F |
KW-317F |
|
Sensor + DSP |
SONY IMX138 + FH8520 |
CMOS PC3003U |
CMOS PC139B +8510 |
CMOS PC3089K |
CMOS PC1099K |
|
Pixel |
PAL: 1080(H)*720(v) |
PAL: 976(H)*582(v) |
PAL: 976(H)*582(v) |
PAL: 976(H)*582(v) |
PAL: 976(H)*582(v) |
|
TV Lines |
1200TVL |
500TVL |
7OOTVL |
800TVL |
900TVL |
|
Signal System |
PAL/NTSC |
||||
|
Lens Optional |
6mm,8mm CS Lens optional |
||||
|
Minimum |
0 Lux (Infrared on) |
||||
|
S/N |
>52dB |
||||
|
Shutter |
1/50(1/60)_1/100,000(Sec.) |
||||
|
Gamma |
> 0.45 |
||||
|
Synchronous |
internal synchronization |
||||
|
White Balance |
Auto white balance |
||||
|
Video Output |
1Vp-p,75ohm,BNC |
||||
|
Power |
DC12V,1000mA |
||||
|
Infrared |
850nm |
||||
|
Infrared |
30M |
||||
|
Infrared Led |
1 pcs* Array IR-LED |
||||
|
weight |
1.0KG |
||||
|
Temperature |
(-20°C ~ +50) |
||||
