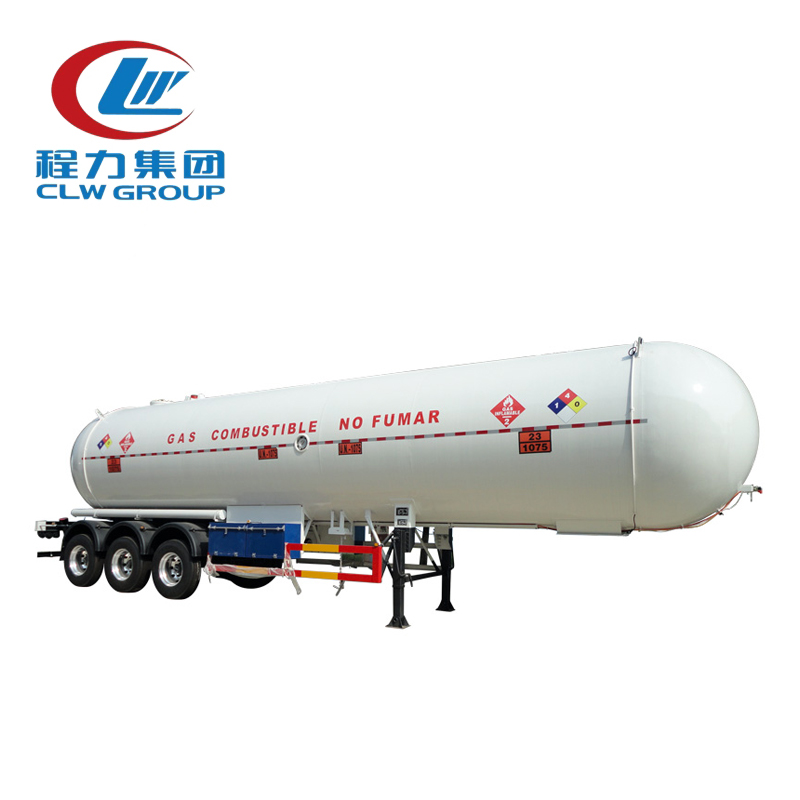

3 Axles 56000 Liters LPG Tank Semi Trailers
Quantité : 30000 Unit Prix : 5000-50000USD
LPG tank semi trailer, also known as liquefied petroleum gas semi trailer, LPG transportation semi-trailer, etc. It is used to transport the propane isobutene and other liquid propylene ammonia liquefied gas such as methylamine acetaldehyde dedicated transport semi-trailer. We have quality lpg semi trailers for sale.
The advantage of CLW 3 Axles 56000 Liters LPG Transport Trailers For Sale
1. Quality, dimension and welding quality of pressure components, operation quality, installation quality, safety devices and accessories within the product materials.
2. Physical and chemical tests of conventional tank materials, such as mechanical properties and chemical components. Through strict X-ray nondestructive testing and magnetic particle testing, the welding joints, welding parts, can and geometrical pressure were tested.
3. Sealing products, bearing pressure, affecting the inspection of various technical indexes of product safety operation.
4. A, grade B 100% radiation welding test, grade II qualified, C, grade D weld 100% magnetic particle inspection, grade I qualified.
The Specification of 3 Axles 56000 Liters LPG Tank Semi Trailer |
|
|
|
Tanker Essential Information |
|
Volume of Tank(Liters) |
56 |
Overall Dimensions(L*W*H)(mm) |
12700*2500*3975 |
Tank Dimensions |
2450*11.5*12340 |
(Inner Diameter*Thickness*Length)(mm) |
|
Estimated Tare Weight(kg) |
16480 |
Payload(kg) |
23520 |
Total Weight(kg) |
40000 |
Wheelbase(mm) |
6865+1310+1310 |
Shell of Tanker |
|
Products |
Liquefied Petroleum Gas (Propane) |
Fluid Property |
Flammable |
Design Pressure(Mpa) |
1.61 |
Design Temperature(℃) |
50 |
Corrosion Allowance(mm) |
1 |
Weld Joint Factor |
1 |
Major Materials of Bearing Pressure |
Tanker Body: |
End Plate: |
|
Main Beam: |
|
Quality Control Process |
|
Riagraphic Test |
100% X-ray detection |
Heat Treatment |
Overall treatment in a furnace,600℃ to 640℃ |
Hydraulic Test(Mpa) |
2.22 |
Test Pressure(Mpa) |
1.6 |
Magnaflux Inspection |
For pipe and flange connection |
Manhole(As Customer's Requirement) |
|
Quantity |
1;on the top, DN450/DN500 |
Safety Valve(As Customer's Requirement) |
|
Quantity |
2 |
Location |
On the top of tanker |
Size |
DN50 or As Customer's Requirement |
Level Gauge |
|
Type |
Manuel rotation type/Ball floating type |
Location |
At the rear or front of the end plate or as requirement |
Control System |
|
Liquid Gauge |
1 |
Thermometer |
1 |
Pressure Gauge |
1 |
Emergency Cut-off Valves |
2 |
Ball Valve |
2 |
Running System |
|
Axles |
3*13T BPW Brand |
Tire |
12R22.5 Tubeless Tire |
Landing Leg |
JOST |
King Pin |
2” or 3” |
Accessories |
|
Tool Box |
2 |
Valve Box |
2 |
Wheel Carrier |
1 |
Fire Extinguisher |
2 |
Fender |
4 |
Paint |
As Customer's Requirement |
Anti Static Belt |
As Customer's Requirement |
Electric System |
As Customer's Requirement |
Brake |
As Customer's Requirement |
Discharging Hose |
As Customer's Requirement |
Sun Visor |
As Customer's Requirement |
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels |
