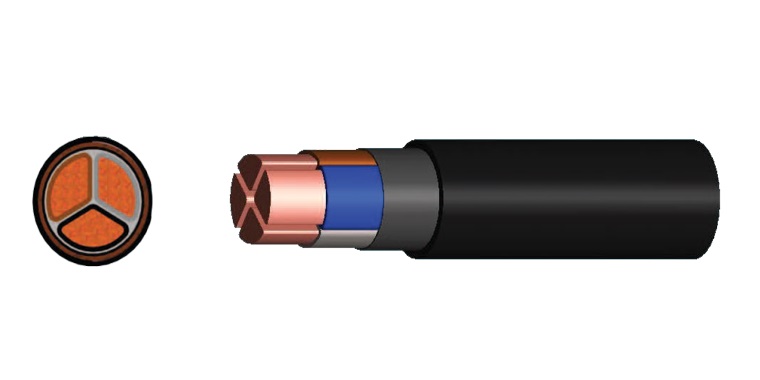

3 Cores Power Cable (PVC Insulated)
3 core pvc flexible cable
3 core pvc cable
PVC insulated 3 core power cables are normally used in power transmission and distribution systems. The 3 core PVC flexible cables are referred to IEC60502 CU/PVC/PVC 0.6/1KV. The circular conductor is applied for the size below 16㎡ and the shaped conductor is applied for the size above and including 35㎡.
3 Cores Power Cable (PVC Insulated) Parameter
|
Cross-sectional Area (mm²) |
No.& diameter of wire (N/mm) |
Average overall diameter (mm) |
Reference weight (kg/km) |
Conductor Resistance (Ω/km) 20℃ Max |
|
3x1.5 |
1/1.38 |
12.5 |
211 |
12.1 |
|
3x2.5 |
1/1.76 |
13.3 |
258 |
7.41 |
|
3x4.0 |
7/0.85 |
15.9 |
379 |
4.61 |
|
3x6.0 |
7/1.04 |
17.0 |
466 |
3.08 |
|
3x10 |
7/1.35 |
19.1 |
646 |
1.83 |
|
3x16 |
7/1.7 |
21.3 |
881 |
1.15 |
|
3x25 |
10/1.83 |
19.8 |
973 |
0.727 |
|
3x35 |
14/1.83 |
21.6 |
1280 |
0.524 |
|
3x50 |
19/1.83 |
24.8 |
1735 |
0.387 |
|
3x70 |
27/1.83 |
28.2 |
2360 |
0.268 |
|
3x95 |
37/1.83 |
32.0 |
3183 |
0.193 |
|
3x120 |
30/2.32 |
35.1 |
3979 |
0.153 |
|
3x150 |
37/2.32 |
38.5 |
4864 |
0.124 |
|
3x185 |
37/2.52 |
42.2 |
5917 |
0.0991 |
|
3x240 |
48/2.52 |
48.0 |
7598 |
0.0754 |
|
3x300 |
61/2.52 |
53.3 |
9548 |
0.0601 |
|
3x400 |
61/2.95 |
60.2 |
12822 |
0.0470 |
Description of 3 Cores Power Control Cable (PVC Insulated）
Rated Temperature: 70℃
Rated Voltage: 600/1000V
Reference Standard: GB/T12706, IEC60502, BS6346
Model: VV
Shaped stranded copper conductors
Flame retardant insulated with PVC compound
PVC bedded
Flame retardant PVC sheathed overallApplication of 3 Core PVC Cable (PVC Insulated)
• For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions.
• For situation not suppose to bear external mechanical force.As one of wire cable manufacturers, we will do our best to meet all the needs of customers.
