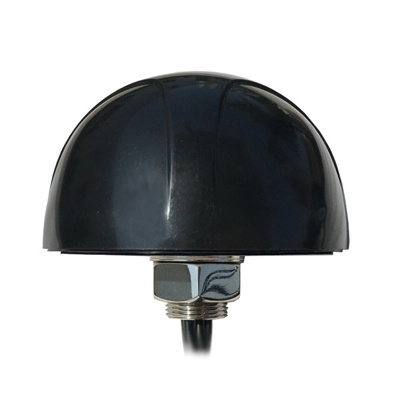

3 in 1 Screw-Mount 4G/3G/2G/WiFi/L1/L5 MIMO Antenna AC-L1L5/LTE/WIFI-BQXD
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The cables are low loss allowing for lengths of up to 10 meters , critical for buses, trains and other commercial transport applications.
Specification of 3 in 1 Screw-Mount 4G/3G/2G/WiFi/L1/L5 Antenna MIMO LTE
|
Electrical |
||
|
GPS Part: |
Dielectric Antenna |
|
|
Frequency Range |
1575.42MHz±3 MHz/1602-1610MHz |
|
|
Polarization Type |
RHCP |
|
|
Gain |
5dBi |
|
|
V.S.W.R |
<2.0</span> |
|
|
Impedance |
50Ώ |
|
|
LNA |
|
|
|
LNA Gain |
28±2dB Typical |
|
|
Noise Figure |
1.5dB |
|
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
|
V.S.W.R |
＜2.0 |
|
|
Voltage |
2.7/3.0/3.3/5.0/3.0 to 5.0 etc. |
|
|
Current Consumption(mA) |
11 Max |
|
|
Impedance |
50Ώ |
|
|
DC current |
5-15mA |
|
|
WIFI Part: |
Frequency range |
2400-2500MHz, 4900-5850MHz |
|
V.S.W.R |
＜2.0 |
|
|
Gain |
6/8dBi |
|
|
Polarization |
Linear |
|
|
Impendance |
50Ω |
|
|
LTE Part: |
Frequency range |
698-960MHz, 1710-2170MHz, 2300-2700MHz |
|
V.S.W.R |
3Max |
|
|
Gain |
3/5/6/7dBi |
|
|
Polarization |
Vertical |
|
|
Impendance |
50Ω |
|
|
Mechanical |
||
|
|
Housing |
Black |
|
Cable |
GPS: RG174 LTE&WIFI: RG58 |
|
|
Length |
3m standard, fully customizable |
|
|
Connector |
SMA(M) standard, fully customizable |
|
|
Environmental |
||
|
|
Operation Temperature |
-40℃~+85℃ |
|
Humidity |
65%-95%RH |
|
|
Waterproof |
IP67 |
|
|
Antenna Radome Material |
ABS |
|
|
Mount way |
Screw |
|
|
Antenna Dimension |
Ф143.5×80mm |
|
|
Weight |
1.2KG |
|
|
RoHS Compliant |
YES |
|
Now the price of 4g mimo antena is reasonable, if you have needs to buy outdoor mimo 4g antenna, please contact us.
