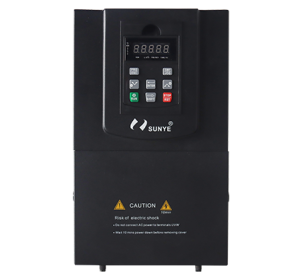

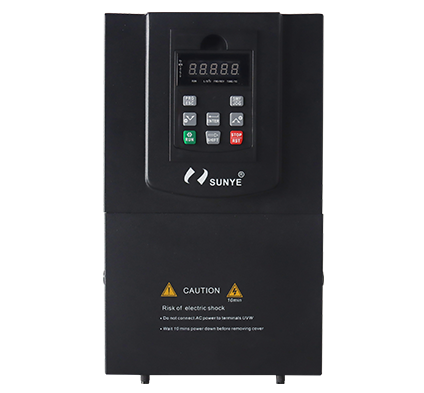

3 phase 380V (T4)/400kW~1400KW High Performance Engineering Low Voltage Drive

Human-machine interface in English and Chinese versions, with optional operating languages. Portable operating keyboard, mobile phone, app, computer up-loading software, etc., with a variety of operating methods. Real-time monitoring of drive-related operating data to provide an effective basis for judgement. Integration of functions such as over-voltage, over-current, over-frequency, input/output phase loss, motor leakage, motor overload inverse time protection and wave-by-wave current limiting fast protection.

Technical Parameters of 3 phase 380V (T4)/400kW~1400KW Low Voltage Drive

Three phase 380V (T4) /400kW~ 1400KW High Performance Engineering Low Voltage Drive

Model

Rated power(kW)

Rated current(A)

Dimension(W*H*D)

Quantity of rectifier modules

Width of rectifier module (mm)

Quantity of inverter modules

Width of inverter module (mm)

Weight (kg)

T4(380V)

HC800-T4-710G2AS

710

1377

2320×630×2200

2

700

3

1000

1500

HlC800-T4-800G2AS

800

1552

2320×630×2200

2

700

3

1000

1500

HlC800-T4-900G2AS

900

1746

3020×630×2200

3

1000

4

1400

1600

HlC800-T4-1000G2AS

1000

1940

3020×630×2200

3

1000

4

1400

1600

HlC800-T4-1100G2AS

1100

2134

3320×630×2200

3

1000

5

1700

1700

HlC800-T4-1250G2AS

1250

2425

3320×630×2200

3

1000

5

1700

1700

HlC800-T4-1400G2AS

1400

2716

4020×630×2200

4

1400

6

2000

1800

VFD Application Industries and Fields

HIVERT Standard medium voltage VFD series is widely used in various fields in national economy, exported to Europe, Middle East, Southeast Asia etc.. Perfect solutions for soft start, speed adjusting, energy saving and intelligent control of medium voltage AC motors (including synchronous and asynchronous motors) could be supplied to customers.

As one of the inverter drive manufacturers, we provide inverter drive motor, 3 phase variable speed drive, 3 phase vfd drive, 3 phase vfd on single phase, 3 phase variable speed controller, 3 phase vfd controller, 3 phase variable frequency drive, 3 phase drive, etc. Want to know 3 phase vfd price or more, contact us.
