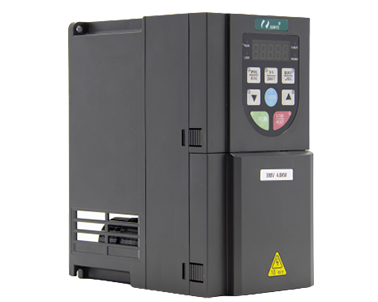

3 phase 660V(7T)/11kW~710kW General Purpose Vector Control Low Voltage Drive
Easy to use: One machine could be applied to a variety of industrial applications; Multi-mode function parameter group: High reliability: The whole series adopts DC fans, Sealed DC contactors, can be directly used in EPS, DC inverter, and other industries.
Technical Parameters of 3 phase 660V(7T)/11kW~710kW Low Voltage Drive
Model |
Input Voltage |
Motor(kw) |
Output current(A) |
Dimension (W*H*D) |
hic530-3sr4g |
singel phase 220v: -15%~20% |
0.4 |
2.3 |
172.5×96×141 |
hic530-3sr75g |
0.75 |
4 |
||
hic530-3s1r5g |
1.5 |
7 |
||
hic530-3s2r2gb |
2.2 |
9.6 |
206×119×154 |
|
hic530-3s4r0gb |
4 |
17 |
268×139×115.5 |
|
hic530-3s5r5gb |
5.5 |
25 |
||
hic530-4tr75gb |
three phase 380v: -15%~20% |
0.75 |
2.1 |
172.5×96×141 |
hic530-4t1r5gb/2r2pb |
1.5/2.2 |
3.8/5.1 |
||
hic530-4t2r2gb/4r0pb |
2.2/4.0 |
5.1/9.0 |
206×119×154 |
|
hic530-4t4r0gb/5r5pb |
4.0/5.5 |
9.0/13.0 |
||
hic530-4t5r5gb/7r5pb |
5.5/7.5 |
13.0/17.0 |
268×139×155.5 |
|
hic530-4t7r5gb/9r0pb |
7.5/9.0 |
17.0/20.0 |
||
hic530-4t9r0gb/011pb |
9.0/11.0 |
20.0/25.0 |
324×188×188 |
|
hic530-4t011gb/015pb |
11.0/15.0 |
25.0/32.0 |
Specification of 3 phase 660V(7T)/11kW~710kW Low Voltage Drive
Item |
Specifications |
|
Main control functions |
Maximum frequency |
Vector control: 0~600Hz VF control: 0~1200Hz |
Carrier Frequency |
1k ~ 15kHz; the carrier frequency will be automatically adjusted according to the load characteristics. |
|
Input frequency resolution |
Digital setting: 0.01Hz Analog setting: maximum frequency ×0.1% |
|
Control mode |
Open loop vector control ; V/F control. |
|
Start-up torque |
Mode G machine: 0.5Hz/180% (open loop vector control) Mode P machine: 0.5Hz/120% (Open loop vector control) |
|
Speed adjustment range |
1:200(Open loop Vector flux control) |
|
Main control functions |
Stable speed Precision |
Open loop Vector flux control:≤±0.5% (rated synchronous speed) |
Stabilization of speed control |
Open loop Vector flux control:≤±0.3% (rated synchronous speed) |
|
Torque response |
≤40ms(Open magnetic flux vector control) |
|
Overload capacity |
Mode G machine: 150% rated current 60s; 180% rated current 5s Mode P machine: 130% rated current 60s; 150% rated current 5s |
|
Torque boost |
Automatic torque boost; manual torque boost 0.1% to 30.0% |
|
V/F curve |
Linear V/F, Multi-point V/F, and Square V/F |
|
Speed-up and |
Straight line or S curve speed-up and speed-down mode; four kinds of speed-up and speed-down time; |
|
Speed-down curve |
Speed-up and speed-down time ranges from 0.0s to 3000.0s |
|
DC brake |
DC brake frequency: 0.00Hz ~ maximum frequency; brake time: 0.0s ~ 36.0s, and brake current value: 0.0% to 100.0%. |
|
Jog control |
Jog frequency range: 0.00Hz ~ 50.00Hz; Jog speed-up/speed-down time: 0.0s ~ 3000.0s. |
|
Simple PLC and multi-speed running |
It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal. |
|
Built-in PID |
It is easy to realize process-controlled close loop control system. |
|
(AVR)Automatic voltage regulation |
It can keep constant output voltage automatically in case of change of mains voltage. |
|
Torque limit and control |
"Shovel" characteristics, automatic limit on the torque on running time, preventing frequent over-current trip; closed loop vector mode can realize the torque control |
|
Customized functions |
Peripherals self-detection upon power-on |
It can conduct safety detections on the peripherals upon power-on, including earth and short circuit detections. |
Shared DC bus function |
It can realize the function that multiple inverters share the DC bus. |
|
JOG key |
Programmable key: Select the forward and reverse rotations/jog operation command. |
|
Traverse frequency control |
Multiple triangular-wave frequency control function. |
|
Fast current limit function |
With fast current limit algorithm built in to reduce the probability of over-current alarm; to improve the anti-jamming capacity of the whole machine. |
|
Timed control |
Timing control function: Setting time range from 0h to 65535h. |
|
Keyboard extension line standardization |
Customers can use standard cable to extend the keyboard |
|
Operation function |
Running command channel |
Three types of channels: operation panel given, control terminal given and serial communication port given. These channels can be switched in various ways. |
Frequency source |
Ten types of frequency sources in total: digital given, analog voltage given, analog current given, pulse given, and serial port given. It can be switched in various ways. |
|
Auxiliary frequency source |
Ten types of auxiliary frequency sources in total. It can implement micro tuning and synthesis of auxiliary frequency. |
|
Input terminal |
Seven digital input terminals, and nine terminals in maximum (AI1, AI2 can be used as DI terminals), it has compatibility to PNP or NPN input method. Two analog input terminals, in which AI1 only be used for voltage input, and AI2 can be used as voltage or current input. (if expanded- input or output terminal function is needed, please use HIC580 series.) |
|
Output terminal |
One digital output terminal (bipolar output) Two relay output terminal Two analog output terminals, with optional 0/4mA to 20mA or 0/2V to 10V. It can realize the output of set frequency, output frequency and rotation speed etc. |
|
Display and Keyboard <span style="color: #666666 |
