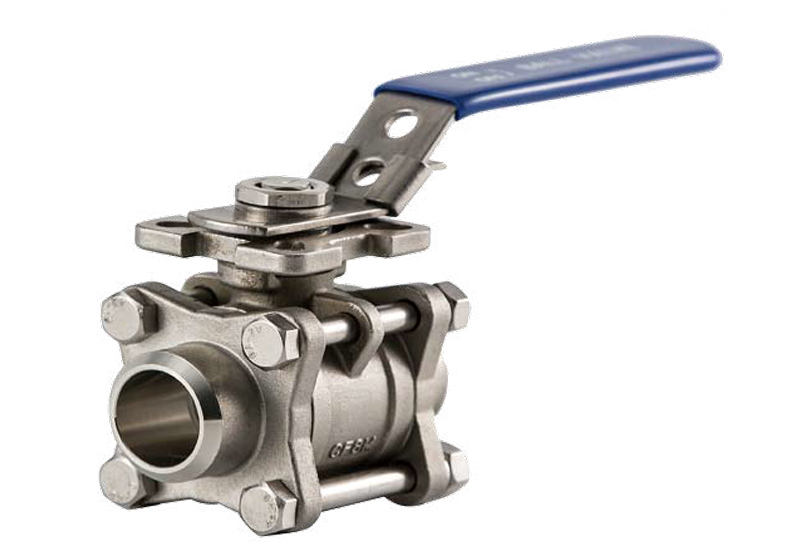

3 Piece Butt Welded Ball Valve
Full.bore.ISO5211.
Connection.standard: Internal.
entry.blow-out.proof.stem
Material: .CF8M.CF8.CF3M. WCB
Pressure.rating: .1000PSI.WOG
Pressure.test: .API.598
Lever.handle.with.locking.device
Welcome to our homepage. We are the Penglai huande steel valve Co.,Ltd who are willing to provide you with high-quality precision casting stainless steel ball valve buttweld. This is our 3PC butt welding ball valve with a high platform. This kind of product is our best seller in the European market and American market. According to the ISO5211 and CE certificate, we built up our wax injection and de-wax craftwork level. As a result, our three-piece butt welding ball valve with a high platform is equipped with a ball closing member, and the ball rotates around the centerline of the valve body to achieve a valve that opens and closes. The fluid resistance is small, and its drag coefficient is equal to the length of the same length. And it has a simple structure, small size, lightweight. It is compact and reliable. At present, the sealing surface material of the ball valve is widely used with plastics and has good sealing performance. It has also been widely used in vacuum systems. When fully open or fully closed, the sealing surfaces of the ball body and the valve seat are isolated from the medium. When the medium passes through, the sealing surface of the valve will not be eroded. The seat sealing performance of our 3PC butt welding high platform ball valve is good, it also uses a seal ring made of elastic material such as PTFE, the structure of this product is easy to seal, and the valve sealing capacity of the ball valve increases with the increase of the medium pressure. In addition, is has the anti-static function: Set the spring between the ball, valve stem and valve body to export the static electricity generated during the switching process. If you are interested in our 3pc butt welding high platform ball valve, please feel free to contact us anytime.
Size of 3 piece butt welded ball valve:
Φd |
11 |
12.7 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
The |
47.6 |
47.6 |
55 |
73.6 |
81 |
91 |
103 |
120 |
155 |
182 |
228.4 |
Ll |
112 |
112 |
112 |
138 |
138 |
160 |
205 |
205 |
252 |
252 |
324 |
H |
61 |
61 |
62 |
70 |
74 |
86 |
92 |
99 |
147 |
158 |
172 |
B |
11 |
11 |
12 |
11 |
11 |
15 |
15 |
15 |
20 |
20 |
20 |
ISO5211 |
F03 |
F03-F04 |
F04-F05 |
F05-F07 |
F07-F10 |
Specification of 3 piece butt welded ball valve:
No. |
Drawing.No. |
Name |
Material |
QYT |
1 |
V3M-0001 |
Body |
CF8M |
1 |
2 |
V3MB-0002 |
Cap |
CF8M |
2 |
3 |
V3M-0003 |
Ball |
CF8M |
1 |
4 |
V3M-0004 |
Stem |
316 |
1 |
5 |
V3M-0005 |
Seat |
PTFE+3%.GF |
2 |
6 |
V3M-0006 |
Thrust.washer |
PTFE+15%.Graphite |
1 |
7 |
V3M-0007 |
Gasket |
PTFE+15%.Graphite |
2 |
8 |
V3M-0008 |
Bolt |
304 |
4 |
9 |
V3M-0009 |
Nut |
304 |
4 |
10 |
V3M-0010 |
Spring.washer |
304 |
4 |
11 |
V3M-0011 |
O.ring |
Viton |
1 |
12 |
V3M-0012 |
Stem.packing |
PTFE |
1 |
13 |
V3M-0013 |
Gland |
304 |
1 |
14 |
V3M-0014 |
Butterfly.washer |
301 |
2 |
15 |
V3M-0015 |
Lock.wahser |
304 |
1 |
16 |
V3M-0016 |
Square.washer |
304 |
1 |
17 |
V3M-0017 |
Handle |
304 |
1 |
18 |
V3M-0018 |
Flat.ring |
304 |
1 |
19 |
V3M-0019 |
Nut |
304 |
2 |
20 |
V3M-0020 |
Handle.sleeve |
Rubber |
1 |
twenty one |
V3M-0021 |
Bolt |
304 |
1 |
twenty two |
V3M-0022 |
Nut |
304 |
1 |
twenty three |
V3M-0023 |
Spring.washer |
304 |
1 |
twenty four |
V3M-0024 |
Locker |
304 |
1 |
