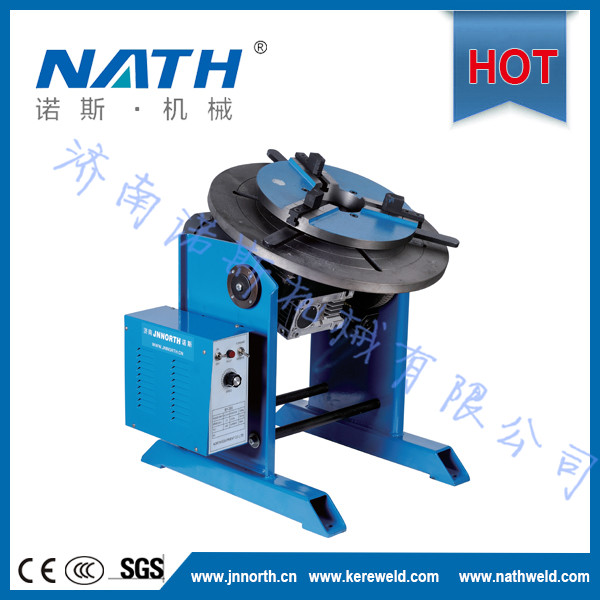

300kg welding positioner in shandng China
Product Application
300kg welding positioner is mainly used in factory to place the workpiece in the best position for welding and assembling with the worktable rotation and tilting.
Specifications
|
型号Model |
NHCZ-1515 |
|
输入电源 Power Input |
3 phase AC380V 50/60Hz |
|
横梁升降行程 Beam Lift Itinerary |
1500mm |
|
横梁伸缩行程 Beam Stretch Itinerary |
1500mm |
|
横梁升降速度 Beam Lift Speed |
700mm/Min |
|
横梁伸缩速度 Beam Stretch Speed |
200-1500mm/Min |
|
横梁驱动方式 Beam Drive Mode |
变频电机+滚珠丝杠驱动 Inverter Motor+Ball Screw Drive |
|
机头水平微调行程 Head Level Fine-turning Itinerary |
50mm |
|
机头垂直微调行程 |
50mm |
|
机头调节方式 Head Adjustment Mode |
手动调节 Manual |
|
控制方式 Control Mode |
手控盒控制 Hand Control Box Control |
|
外形尺寸H×L×B Over Dimension H×L×B |
2300×2200×620mm |
Main Features
The rotation structure is driven by the DC motor, while stepless speed regulation can be achieved.
The positioner turning structure of worm and gear has the function of self-lock, and the worktable can be stepless turned from 0 degree to 90 degree.
Special design of anti-electromagnetic which reduce the high frequency interference of TIG's welding,and can improve the welding quality effectively.
Configure a self-controller to control the working condition and working time which can achieve the linkage of the positioner and welder.
Can configure the welding chuck,quick and easy to clamp and fix the workpiece.
Adopting the foot pedal to control the on/off of the positioner.
The adjustable-welding torch can be furnished to fix the position of the welding torch.
The track and air-powered tip can be furnished to achieve the function of self-holding to the workpieces.
The track can be extended according to your requirement.
