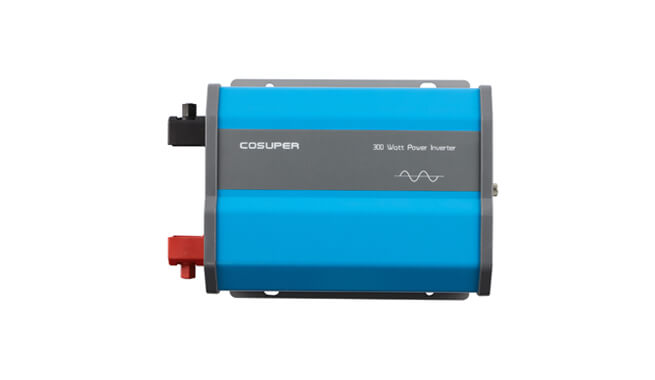

300W DC TO AC INVERTER
300W DC to AC inverter comes with 1 AC outlets provide with continuous 12V/24VDC to 100V/120V/230VAC power rated 300W (600W peak). The 300W DC to AC inverter takes little space with compact size( 237mm*150mm*81mm) and lightweight ( 1.4kgs). It is also called 300 watt pure sine wave power inverter that is built-in multi-protection system provides over voltage, low voltage, short circuit, over temperature and over load protection. Pure sine wave outlet works well with sensitive electronics like curling iron, laptop, hair straighter, drone, cordless power tool chargers and other appliances that require up to 300W. Our 300W DC to AC inverter can provide less electric noise, less damage to your device work with and better compatibility than modified sine wave inverter. For safety, please purchases are based on continuous power output and make sure the total wattage of all your plugged devices is less than 300W.
FEATURES OF 300W DC TO AC INVERTER
Regulated by UL458 and CSA C22.2, CE under EN55022: 2006+A1: 2007 standards
Pure sine wave output with good load ability for inductive load, resistive load, mixed load
Independent heatsink design to decrease temperature of main case
External 5m cable remote control CR10-H11 (optional)
It is a kind of DC to AC inverter for sale that is suitable for cars, vans, 4x4s, trucks, solar system and back up system
2 years warranty
TECHNICAL SPECIFICATIONS OF 300W DC TO AC INVERTER
|
Model |
SCH300 |
|
Output Power |
300W |
|
Surge Power |
600W |
|
Idle Power |
3W |
|
DC Input Voltage |
12VDC |
|
DC Input Regulation |
10.5-15 VDC |
|
Output Voltage |
100/110/120VAC +/- 3%; 220/ 230/ 240VAC +/- 5% |
|
Output Frequency |
50/60HZ +/- 0.05% |
|
Output Waveform |
True sine wave THD<3%</span> |
|
Power Factor |
0.8-1 |
|
Efficiency |
110V 90% |
|
220V 92% |
|
|
Control & Signal Indicates |
|
|
Fault Indication |
Red LED light and buzz alarm |
|
Work Indication |
Green LED light |
|
Remote Control |
CR10 or CR11 (work with DBS battery isolator) |
|
Battery Type |
AGM, Seal lead-acid, Gel, Open lead-acid, LiFe04 |
|
Protection |
Overload,Over/under input voltage, |
|
Over temperature, Short circuit |
|
|
Safety |
AS/NZS 4763: 2011, UL458, LVD(EN60950) |
|
General parameter |
|
|
Operating Temp |
-5-40℃ |
|
Working Humidity |
20-90% RH |
|
Storage Temp |
-30-70 ℃ |
|
Cooling |
Automatic temp-control fans |
|
Weight (kg) |
1.5 |
|
Size (mm) |
150*237*79 |
There are many power inverter suppliers, but we are one of the best choices for you.
