320 InGaAs QVGA Area Sensor
At Zillion Techsnologies, we provide a wide selection of SWIR short wave infrared products, including SWIR systems, SWIR cameras and SWIR lenses. Being a Chinese agent and distributor of multiple domestic and overseas brands, we aim to offer state-of-art products and solutions to clients globally to meet their needs of various applications.
320 InGaAs QVGA Area Sensor

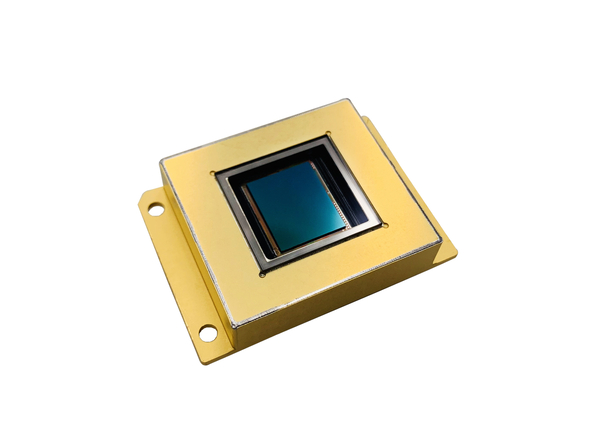

GH-SW320 InGaAs area image sensors are two-dimensional image sensors that have a hybrid structure consisting of a CMOS readout circuit (ROIC: readout integrated circuit) and back-illuminated InGaAs photodiode for short wavelength infrared (SWIR, 900nm-1700nm) and extended wavelength infrared (Vis-SWIR, 400nm-1700nm) regions.
The detector can be supplied in two types of metallic package:
Nitrogen & Vacuum, which both include a Thermo-Electric Cooler (TEC)
It is well-adapted to a large range of applications, such as surveillance, hyperspectral imaging, remote sensing, machine vision, industrial sorting, process inspection, and science.
TECHNICAL INFORMATION OF GH-SW320
|
Key Features |
GH-SW320 |
|
Sensor Type |
InGaAs PIN-Photodiode |
|
Format |
320 x 256 |
|
Pixel Pitch |
15 μm |
|
Spectral Response |
0.9µm-1.7µm / 0.4um-1.7µm (optional) |
|
Integration Type |
Snapshot |
|
Readout Modes |
ITR , IWR , CDS |
|
Exposure Time |
2μs to full frame |
|
Maximum Full Frame Rate |
500 Hz |
|
Maximum Pixel Rate |
18MHz |
|
Output Signal Swing |
≤2V |
|
Temperature Sensor Output |
Yes |
|
Quantum Efficiency(QE) |
>70% ( 1.0um ~ 1.6um ） |
|
Noise with ROIC |
35e- @HG |
|
Dark Current |
30fA @ 0.1V&18℃ |
|
Array Operability |
> 99.5% ( Minimum ) |
|
Non Uniformity without Correction |
＜ 5% |
|
Dimension (W x H x D) |
36 mm x 25.4 mm x 7.2 mm |
|
Windows |
Quartz / Sapphire |
|
Number of Pins |
28-pin Metal DIP Package |
|
Packaging Characteristics |
Hermetically Sealed |
|
Operating Temperature |
- 40℃ to 70℃ |
|
Storage Temperature |
- 40℃ to 70℃ |
