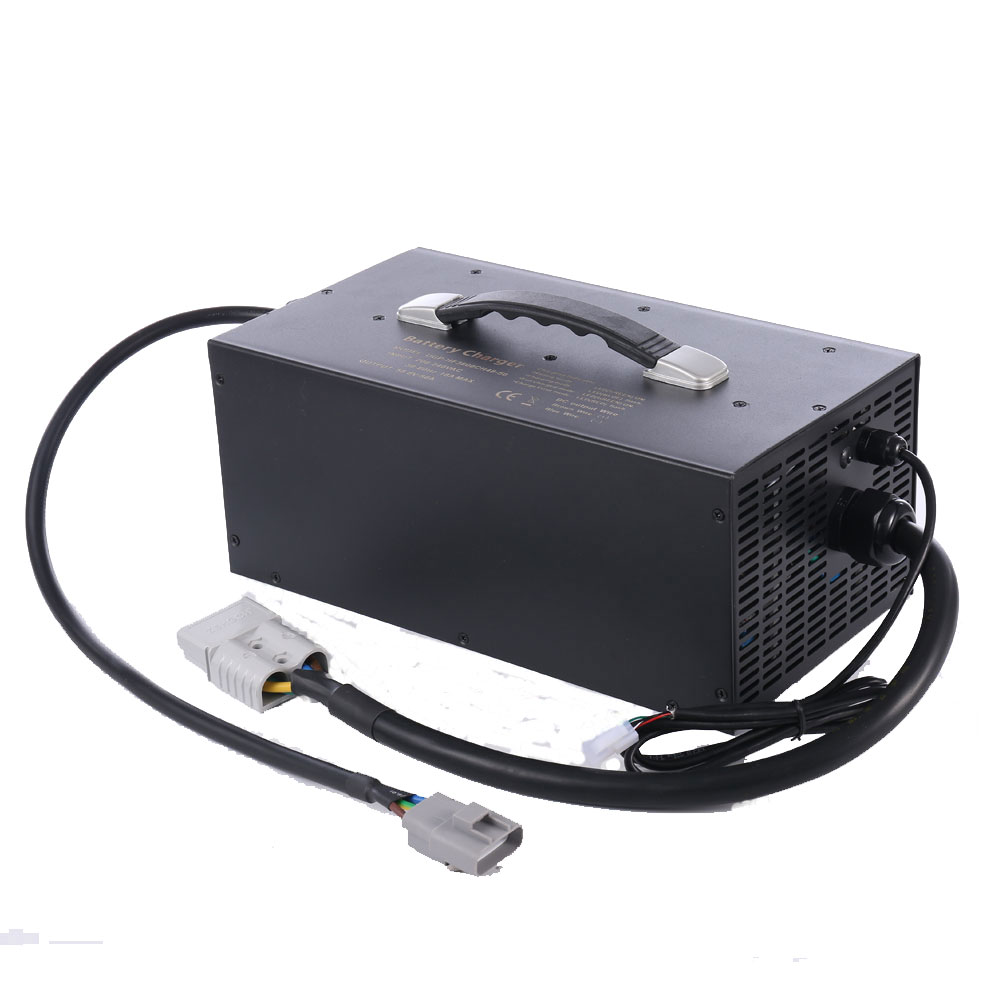

3600W 24V 120A Battery Charger
3600W 24V 120A Battery Charger
Typical output: 24V 100A, 24V 120A battery charger
Fully auto 4 stages charging process by MCU controller
4 LED indicate the battery capacity from 25%~100%
Worldwide AC input 100V-240V
Charging stage: Small current pr-charge; constant current charging; Constant voltage charging
The Specifications Of 3600W 24V 1A Battery Charger
|
Charger Model |
AC Input Voltage |
Battery Voltage |
Max Voltage(V) |
Max Current (A) |
|
|
AP-PF3600CH02921200 |
220 |
24 |
29.2 |
120 |
|
|
AP-PF3600CH04201000 |
220 |
36 |
42 |
100 |
|
|
AP-PF3600CH05460700 |
220 |
48 |
54.6 |
70 |
|
|
AP-PF3600CH07140600 |
220 |
60 |
71.4 |
60 |
|
|
AP-PF3600CH08400500 |
220 |
72 |
84 |
50 |
|
|
AP-PF3600CH02401200 |
220 |
24 |
29.4 |
120 |
|
|
AP-PF3600CH03601000 |
220 |
36 |
44.1 |
100 |
|
|
AP-PF3600CH04800700 |
220 |
48 |
58.8 |
70 |
|
|
AP-PF3600CH06000600 |
220 |
60 |
73.5 |
60 |
|
|
AP-PF3600CH07200500 |
220 |
72 |
88.2 |
50 |
|
|
INPUT |
AC Input Voltage Range |
100V ~ 240V |
|||
|
AC Input Frequency |
45~65HZ |
||||
|
AC Power Factor Correction |
≥0.98 |
||||
|
OUTPUT |
Output Voltage Range |
24V~90V |
|||
|
Output Power Range |
120A(Max) |
||||
|
VIBRATION |
10~50HZ 2G 10 minutes,X,Y,Z /60 minutes |
||||
|
DIMENSIONS(mm) |
( (L)315х(W)180х(H90 |
||||
|
Protections |
Over current protection ,Over Voltage Protection ,Short- circuit Protection Reverse Connection Protection ,Battery open-circuit protection |
||||
|
CERTIFICATIONS |
Safety Approval: CE ROHS |
||||
|
PACKING DETAILS |
9kg/pcs |
||||
|
2pcs/Carton |
|||||
|
Carton size: 615*520*235mm |
|||||
As a power charger supplier, we have types of power supplies china for sale, if you have needs, please contact us.
