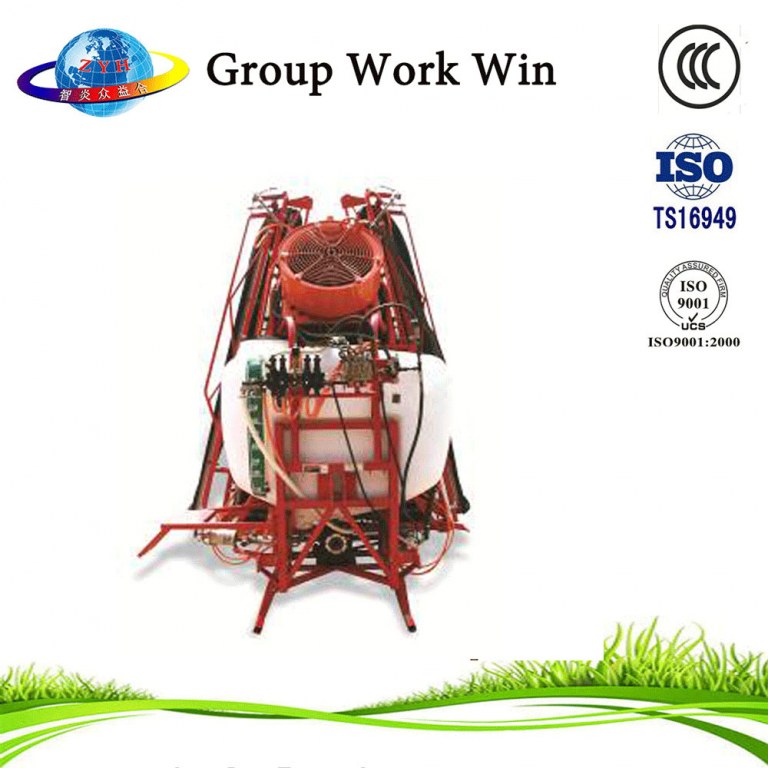

3865 Agricultural mounted boom sprayer
High Quality 3865 Agricultural mounted boom sprayer is a kind of agricultural machinery used for comprehensive field management of wheat, soybeam, cotton and other crops,fruit，vegetable， driving operation and has lots of advantages such as easy operation, comfortable, flexible, high production efficiency and so on.
|
Chemical tank capacity(L) |
1000(rear) / 500、700(optional)(front) |
|
Material |
Fiberglass |
|
Lifting and folding |
Fully hydraulic control |
|
Pressure meter |
Oil pressure |
|
Spraying volume of nozzle |
2-8 optional anti-drop |
|
Dimension(mm) |
2480×1400×3200 |
|
Weight(kg) |
1000 |
|
Max rotation speed(rpm) |
540 |
|
Max pump pressure (mpa) |
1.5 |
|
Application pressure(mpa) |
0.3-0.5 |
|
Fan speed(rpm) |
2300-2600 |
|
Fan diameter(mm) |
760 |
|
Power consumption(hp) |
25 |
|
Matched power(hp) |
≥100， four wheel drive |
|
Filter(mesh) |
25-50 |
|
Boom filter (mesh) |
40-60 |
|
Recommended working speed(km/h) |
6-10 |
|
Mixture |
High pressure jet and circulation mixture |
