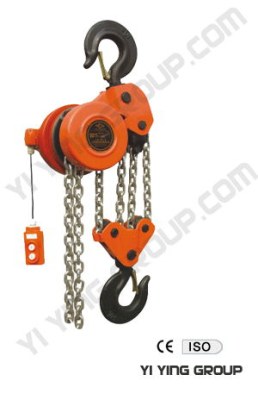

3t 2.5m Electric HoistsDHp

1 Introduction
DHP electric endless chain motor lifting hoist is the new product of our company. It is easy to carry or improve the disadvantage of manual operation and low lifting.

2.Features

1)Condition: New

2)Certificate: CE, ISO

3)Voltage: Customize

4)Contact: sales1 at yiyinggroup dot com

5)Sling type: Chain

6)Capacity: 200000 sets/year

7)Cover: All steel construction

8)High strength alloy load chain

9)Forged alloy steel hooks

10) Fully enclosed gearing

3. Parameters

Model DHP1 DHP2 DHP3 DHP5 DHP10

Rated load T 1T 2T 3T 5T 10T

Testing load T 1.25T 2.5T 3.75T 6.25T 12.5T

Lifting speed m/min 2.5 2.5 2 2 1

Loop track minimum Radius mm 300 380 470 600 730

Standard lift m 3 M

Power 0.5KW 0.8KW 1.1KW 1.5KW 0.8KW

Frequency HZ 50/60

Weight 42Kg 50Kg 55Kg 62Kg 120Kg
