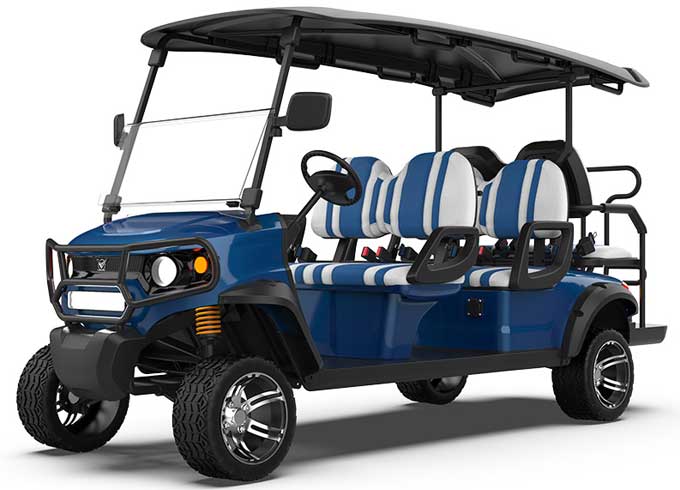

4+2 Seater Lifted Golf Carts
Up to six people can be accommodated in two rows of front seats and one row of rear seats. The 4+2 seat lift golf cart is equipped with independent suspension, larger wheels and off-road tires for better climbing and off-road performance, ideal for hilly golf courses and other uses.
Specification of 4+2 Seater Lifted Golf Carts
|
Technical Parameters |
|
|
Overall Dimension |
3550*1280*2040mm |
|
Passengers Capacity |
6 |
|
Max. Speed |
40km/h & 25mph |
|
Max. Travelling Range |
80-100km |
|
Slope Climbing Capacity |
30% |
|
Turning Radius |
4m |
|
Ground Clearance |
300mm |
|
Brake Distance |
≤4m |
|
Wheelbase |
2400mm |
|
Front/Rear Tread |
950/1000mm |
|
Weight |
650kg |
|
Electric System |
|
|
Motor |
AC, 48V, 5kW |
|
Controller |
48V, 450A |
|
Battery Type |
Lead Acid, 150Ah, 8V*6pcs |
|
Charger |
Intelligent high-frequency car charger |
|
Charging Time |
8 hours |
|
Steering |
“Rack & Pinion” Steering |
|
Motivation Control |
|
|
Braking System |
Front Disc Brake, Rear Drum Brake, EMB system |
|
Front-axle And Suspension |
Independence suspension |
|
Rear-axle And Suspension |
Integral rear axle |
|
Tire |
215/35-12, with alloy rim |
|
Exterior |
|
|
Dashboard |
LCD instrument, Multifunction, show time, speed, driving range, |
|
battery capacity, etc |
|
|
Light |
Front & rear combination LED lights |
|
Seat |
Bus cold foam sponge + high resilience PU leather fabric |
|
Body Material |
Steel frame + ABS engineering plastic molding material |
If you want to know more types of lifted golf cart accessories, please visit our website.
As one of electric golf cart company, we have types of electric golfcart for sale, if you have needs, please contact us.
